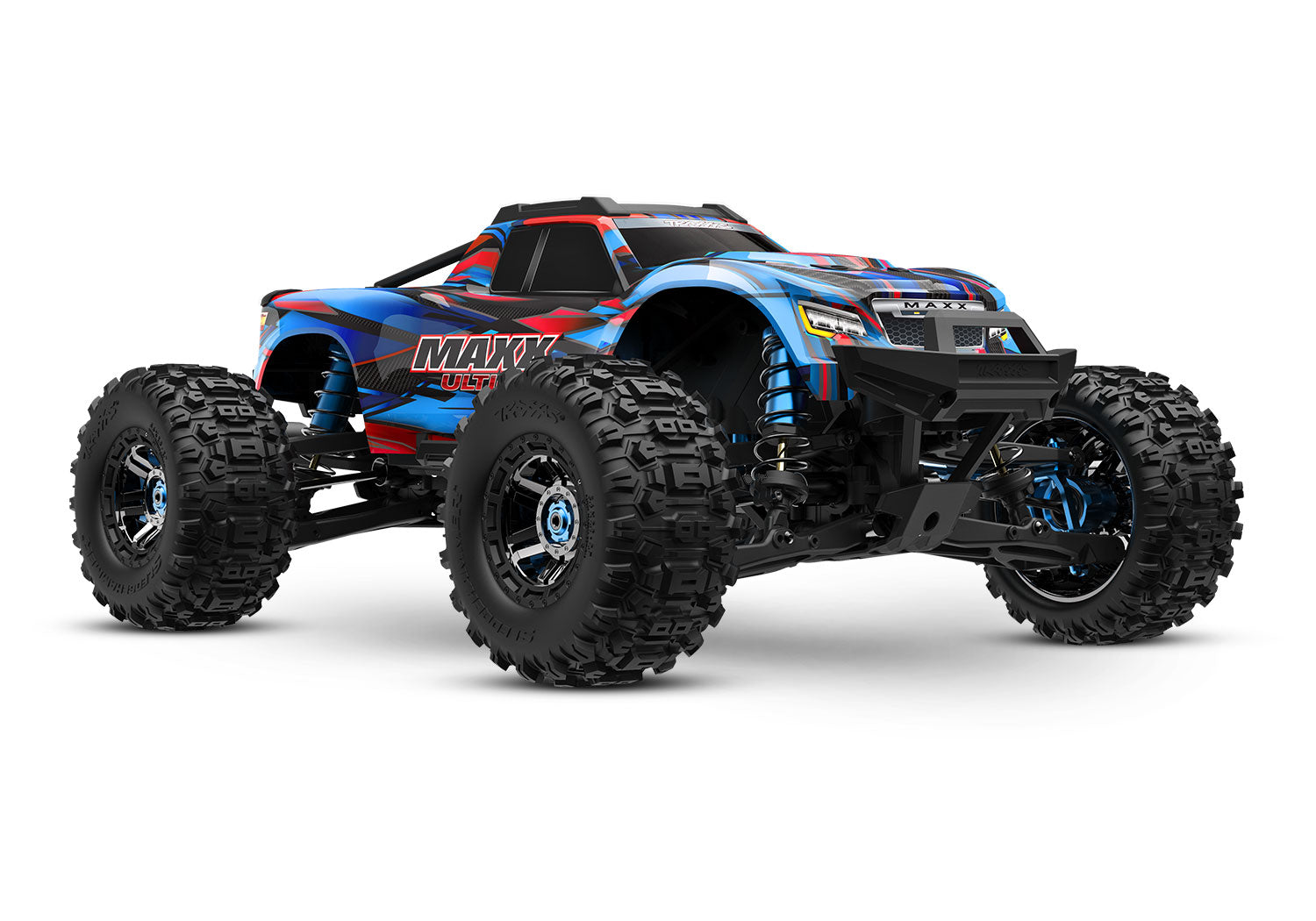

Maxx Ultimate

$899.99
By Traxxas
SKU: 89087-4-BLUE
Color: Blue
View details
  • High Performance Aluminum Upgrades
    • 6061-T6 aluminum C-hubs
    • 6061-T6 aluminum steering blocks
    • 6061-T6 aluminum rear hub carriers
    • 6061-T6 aluminum transmission cover
    • 6061-T6 aluminum motor cradle
  • 55 mph out of the box using single 4s LiPo battery (sold separately)
  • 60+ mph with optional gearing & 4s LiPo battery (sold separately)
  • VXL-4s™ Waterproof Electronic Speed Control
    • 3s–4s LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link™
    • Machined heat sinks
    • 10 gauge silicone wire
    • Integrated protection circuits
    • LED status lights
    • Waterproof
  • Velineon® 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 Kv
    • 5 mm output shaft
    • Aluminum heat sink
    • Cooling fan
  • Traxxas Stability Management®
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
    • Factory-installed telemetry through VXL-4s ESC
    • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Clipless Body Mount System
    • Unique Maxx Ultimate graphics
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Molded body reinforcements for extra protection against tearing
  • Driveline
    • Full-time shaft-driven 4-wheel drive
    • Steel constant-velocity driveshafts
    • Torque-Biasing Center Drive with aluminum housing
    • 17 mm aluminum axle adapters & wheel nuts
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Heavy-duty Cush Drive™ with steel spur gear
    • Splined aluminum center driveshaft
  • Secure Motor Mounting System
    • Aluminum full-length motor cradle
    • Precise, fixed gear mesh adjustments
    • Motor retention separate from gear mesh
  • Modular Composite Chassis
    • Extended modular chassis design interlocks with front and rear bulkheads
    • Absorbs and distributes impact energy
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Easy Battery Access
    • Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
    • Battery is protected deep in the chassis
    • Battery hold-downs pivot for easy access
    • More secure than conventional retention systems
  • Steering
    • 6061-T6 aluminum steering bellcranks
    • 2085RL high-output metal gear steering servo
      • 650 oz-in torque at 6.0 volts
      • 0.13 sec/60° at 6.0 volts
    • Double-shear aluminum servo horn
    • Heavy-duty servo saver spring
  • Suspension
    • TUBES 7075-T6 Aluminum front toe links
    • WideMaxx® suspension arms
      • Tough composite formula resists impact damage, even in cold weather
    • All critical suspension points have double shear strength
    • Aluminum suspension pin retainers
    • Steel pivot balls
  • GT-Maxx® Shocks
    • Threaded aluminum body
    • Aluminum shock caps with pivot balls
    • Ultra-smooth TiN-coated damper shafts
    • Adjustable aluminum upper spring retainer
    • Lower seal cartridge with dual X-rings
    • Lower spring perches bolted on
  • Bumpers
    • Tough energy absorbing front and rear bumpers
    • Lower front and rear skid plates for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
    • Wheelie bar with aluminum wheels
  • Wheels & Tires
    • 2.8″ black chrome wheels with keyed 17 mm hex receptor
    • Sledgehammer® extreme tires for sure-footed traction
    • 1-piece foam inserts
    • Pre-glued, TSM® rated

Maxx · 89087-4

Exploded viewsPDF · rev 250604 Parts list 89086-4 (rev 260213)Parts list 89087-4 (rev 260323)

Replacement parts

Shop every Maxx part
