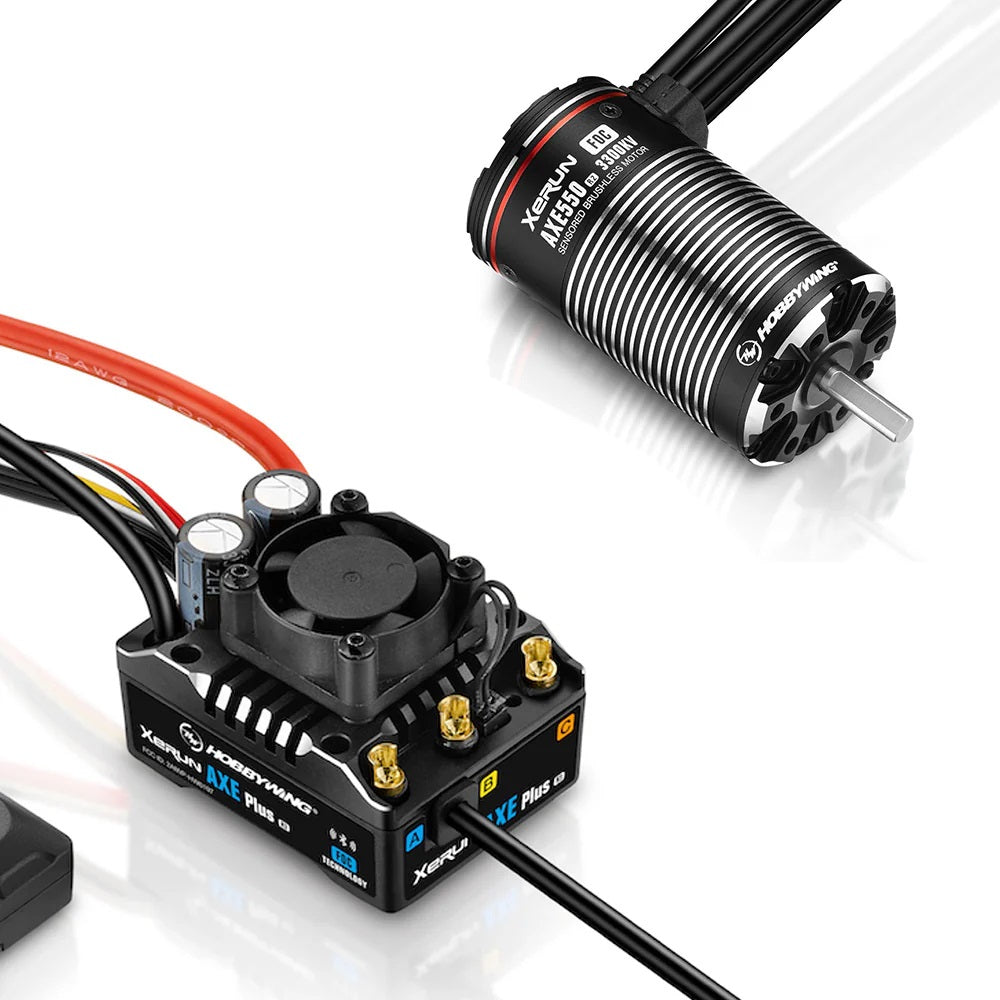

Xerun Axe R3 ESC & 3300Kv 550L R2 Brushless Motor Combo - HWI38020389

Take absolute control of your trail rig with the smooth power delivery and high torque of the Hobbywing Xerun Axe R3 crawler system.

The Hobbywing Xerun Axe R3 system brings advanced Field Oriented Control (FOC) technology to your 1/10 scale rock crawler or trail truck. By combining the Axe R3 ESC with the 3300Kv 550L R2 motor, this brushless combo delivers unmatched low speed control, automatic drag brake adjustment, and incredible torque. It is engineered to sense exactly what your rig is doing on the rocks, adjusting power output dynamically to maintain a consistent speed regardless of the obstacle.

Whether you are crawling steep vertical rock faces or blasting through open trails, this waterproof system handles 2S to 3S LiPo power with ease. The integrated Bluetooth allows you to tune throttle curves, drag brakes, and performance parameters directly from your mobile device without needing an external programming card.

Why You'll Love It

• Field Oriented Control: Ensures smooth, stutter free startup and precise low end throttle resolution.
• Intelligent Torque Matching: Automatically adjusts the motor output to maintain constant RPM when climbing obstacles or descending hills.
• Built In Bluetooth: Connects directly to the HW Link mobile app for quick, wireless firmware updates and tuning adjustments.
• Waterproof Design: Robust sealing protects both the ESC and the sensor connection from mud, water, and trail debris.

What's Under the Hood

• ESC Type: Sensored Brushless FOC
• Motor Type: 550L R2 Sensored Brushless
• KV Rating: 3300Kv
• Input Voltage: 2S to 3S LiPo
• Shaft Diameter: 5mm
• Programming: Built in Bluetooth (HW Link App)

Specifications

• ESC Dimensions: 47.4mm x 36.2mm x 26.5mm
• ESC Weight: 108 grams
• Motor Dimensions: 36mm diameter, 63.8mm length
• Motor Weight: 286 grams

What's In The Box

• ESC: Hobbywing Xerun Axe R3 FOC ESC
• Motor: Hobbywing Xerun Axe 550L R2 3300Kv Brushless Motor
• Accessories: Sensor Cable, Decal Sheet, and User Manual

Needed To Complete

• Battery: 2S or 3S LiPo battery with compatible power connector
• Installation: Soldering tools for battery connector installation

Note: The Xerun Axe R3 system uses a proprietary waterproof sensor port and harness. It is only compatible with Hobbywing Axe R2 and R3 brushless motors and cannot be paired with standard aftermarket sensored motors. Pro-Tip: Calibrate your transmitter throttle range every time you install a new ESC to ensure the FOC drag brake operates at maximum resolution on steep declines.
