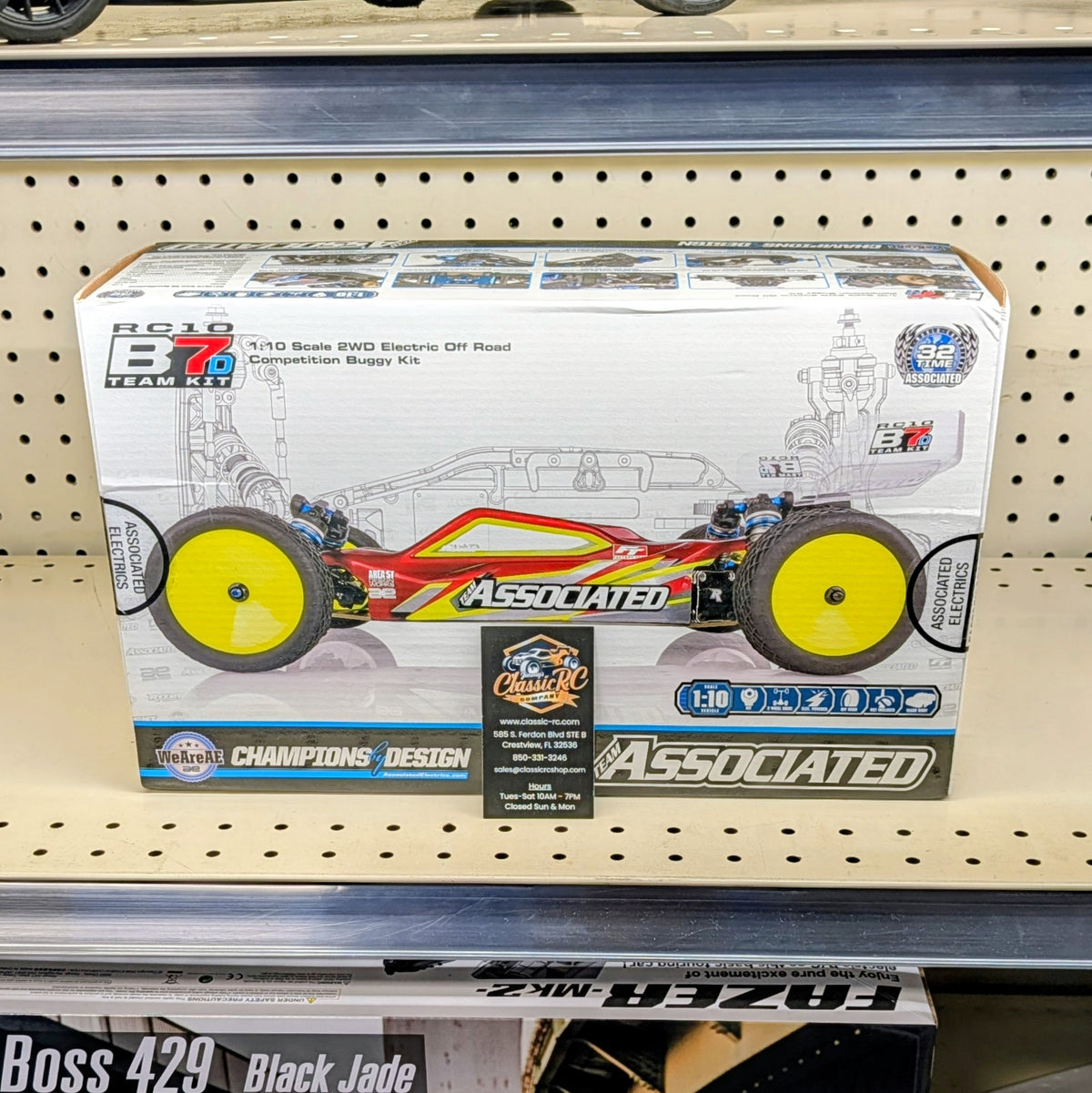

Team Associated RC10B7D Team Kit - ASC90042

The RC10B7D is Associated Electrics' dirt and clay specialist, built from the ground up for competitive 2WD buggy racing where low grip and setup flexibility win races.

The B7D is the 'D' variant of AE's RC10B7 platform, tuned specifically for dirt, clay, and some low-grip AstroTurf tracks. Out of the box it runs a ball differential and a softer-spring, lower-piston setup that puts grip and predictability first. If your local track is slick or you're coming up through the ranks on natural dirt, this is the variant AE recommends you start with. B7 and B7D parts are fully interchangeable, so your tuning options are wide open as you dial it in.

This is a full competition kit. You build it, tune it, race it. Electronics, wheels and tires, and a painted body are not included, which is exactly how a serious club or national racer wants it: your motor, your ESC, your setup.

Why You'll Love It

• 5-gear laydown transmission: The low-profile motor mount shifts motor weight toward the center of the car, lowering the CG and improving chassis balance without the bulk of an upright configuration.
• Long-arm suspension geometry: More suspension travel and a wider arc of articulation means the car stays planted through ruts and bumps that would upset a shorter-arm setup, and it responds consistently whether the track is fresh or hammered.
• Comprehensive steering and caster tuning: KPI-adjustable steering and caster blocks ship with three options in the kit. Add the vertical front outer ballstud for roll center, camber gain, and link-length adjustment, and you have the front-end tunability of a full Factory Team car right out of the bag.
• 7075-T6 aluminum chassis: An increased departure angle helps clear obstacles at speed, and optional weight plate pockets let you redistribute ballast as track conditions change.

What's Under the Hood

• Drivetrain: 2WD with ball differential
• Transmission: 5-gear laydown with low-profile motor mount
• Driveshafts: HD 69mm CVA bones and differential outdrives for added durability at competition outputs
• Front geometry: Height-adjustable aluminum front bulkhead for roll-center tuning; vertical front outer ballstud
• Rear hubs: Standard and HRC (High Roll Center) rear hubs both included
• Battery mount: Highly adjustable holder with thumb tabs for easy pack swaps and weight-bias fine-tuning; compatible with 7.4V to 7.6V 2S LiPo in shorty dimensions (standard or low-profile height)

Specifications

• Scale: 1:10
• Drive: 2WD
• Power: Electric (electronics sold separately)
• Class: Off-road competition buggy
• Chassis: 7075-T6 aluminum
• Turnbuckles: 3.5mm with matching ballcups
• Wings: 7-inch rear wing, 2.5-inch front wing

What's In The Box

• RC10B7D kit (unassembled; electronics, wheels and tires not included)
• Ball differential
• 5-gear laydown transmission with low-profile motor mount
• HD 69mm CVA drivebones and differential outdrives
• Height-adjustable aluminum front bulkhead
• KPI adjustable steering and caster blocks (3 options included)
• Standard and HRC rear hubs
• Adjustable battery holder with thumb tabs
• 7-inch rear wing and 2.5-inch front wing
• One-piece rear wing mount
• Shock tower covers, front and rear
• 3.5mm turnbuckles and ballcups
• Lightweight molded servo mount
• Clear low-profile Lexan body (unpainted)
• Complete hardware pack

Needed To Complete

• 1:10 scale 540-size brushless or brushed motor
• 1:10 scale electronic speed control (ESC) matched to your motor
• 2-channel surface transmitter and compatible receiver
• Steering servo
• 7.4V to 7.6V 2S LiPo, shorty dimensions (standard or low-profile height)
• LiPo-compatible battery charger
• 1:10 scale off-road buggy wheels and tires
• 4 AA batteries for transmitter
• Lexan-specific spray paint for body trimming and painting
• Recommended tools: silicone shock fluid, silicone diff fluid, body scissors, reamer or hole punch, metric wrench set, hobby knife, needle-nose pliers, wire cutters, soldering iron, calipers or precision ruler

Note: This kit is a closeout item. All closeout sales are final: no returns, no refunds. The B7D is fully parts-compatible with the RC10B7, so the entire B7 option-parts catalog applies.
