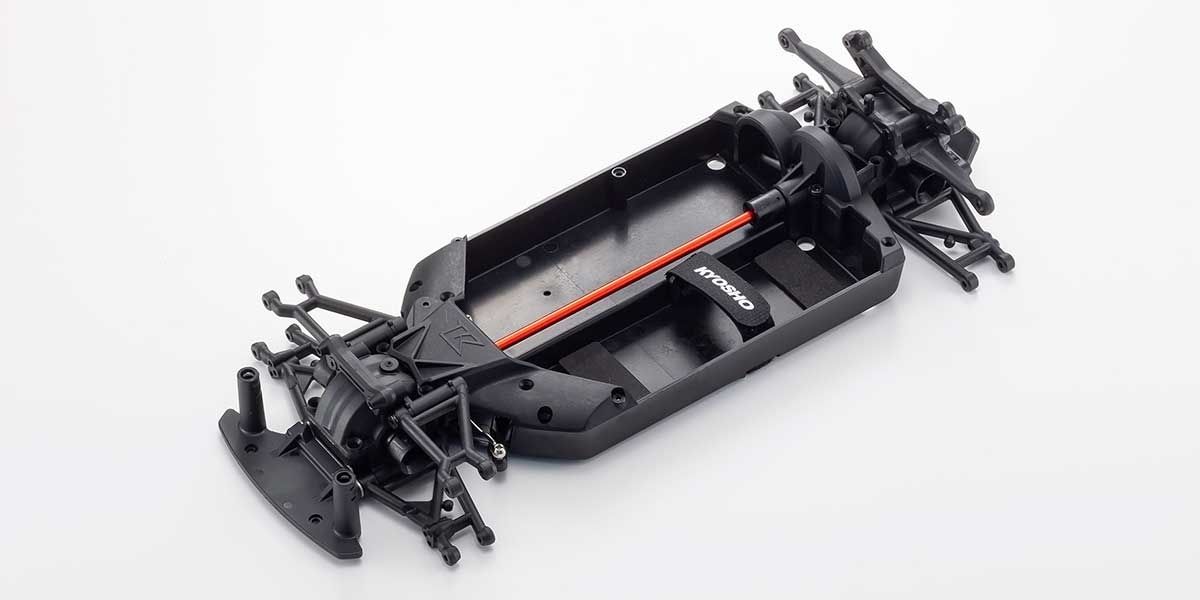

Fazer Mk2 FZ02 4WD Touring Car Chassis Kit

Equipped with popular optional parts

This chassis kit is an optimal base for a racing vehicle

■Length 375mm
■Width200mm/190mm
■Ground clearance 8mm (approx.)
■Wheelbase 260mm
■Tread（Body width:190mm）F:164mm/R:164mm
■Tread（Body width:200mm）F:174mm/R:174mm
■Tires F: φ66mm x 25mm/R:φ66mm x 25mm
■Gear Ratio 6.54:1
■Total storage weight Approx. 1490g (with 7.4V / 4000 LiPo)

●40% pre-assembled chassis
●FAW202 TC Universal Swing Shaft S
●FAW209 HD TC Center Shaft S
●Aluminum Motor Dust Plate
●transponder mounting stay
●+0mm off-set wheel hub & M4 x 16 Wheel screw（for 190mm width body）
●+5mm off-set wheel hub & M4 x 22 Wheel screw（for 200mm width body）
●body mounts for various manufacturers bodies
●FAT701M TC Tires（M）
●Inner Sponge
●VZH003BK Wheel
●1.5/2.0/2.5mm Hexagonal wrench
●3/4/5/5.5/7/8mmSpanner

2ch 1 servo R/C system for cars（Receiver size:L45xW28xH22mm or less）*Recommended products No.82138/82151
●Body
●540-550 class motor *Recommended products No.37031/37032
●ESC compatible with motor used（Size:L36xW32xH23mm or less）*Recommended products No.37051
●Survo *Recommended products No.82273
●Battery charger
●Battery for chassis compatible with ESC used（SIze:L145xW47xH25mm or less）*Recommended products No.GAB4201
●4 x AA batteries for transmitter
●Damper Oil *Recommended products No.SIL0400-8
●Grease（for Ring Gear & Diff）*Recommended products No.96162
●Silicone OIL（for Diff）*Recommended products F:No.SIL50000/R:No. SIL3000
●Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
●Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
●Paint for polycarbonate body
●Tools
