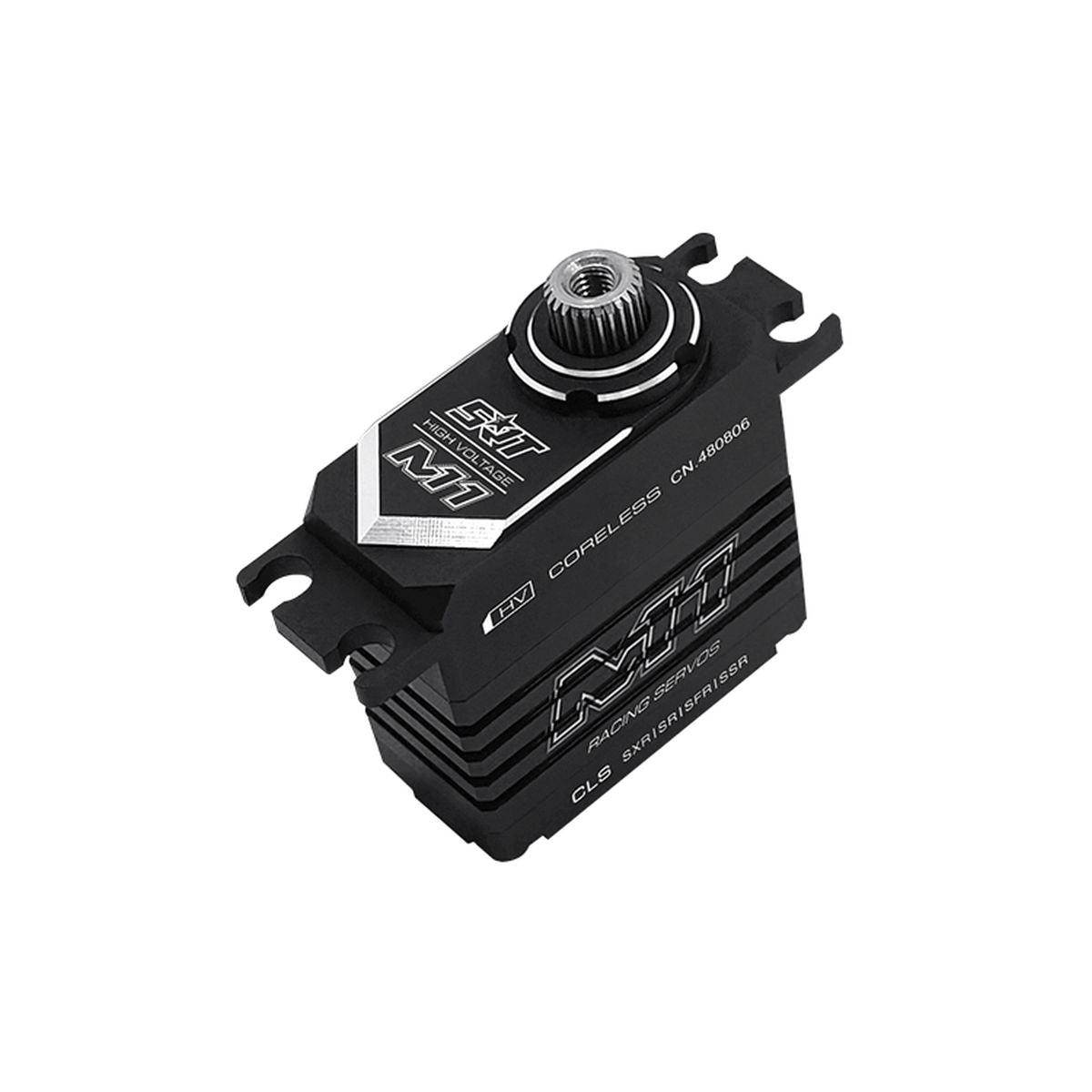

HV Coreless Digital Servo (.055sec / 125.0oz @ 8.4V) - SRTM11

Blistering transit speed meets high-voltage direct power for rapid steering response.

The SRT SRTM11 coreless digital servo is engineered for applications where transit speed is paramount. Capable of handling up to 8.4V direct input from 2S LiPo power, it pairs lightning-quick actuation with steady holding torque on tight racing lines and demanding surfaces.

Why You'll Love It

• Coreless Motor Efficiency: Delivers smooth output and immediate response across the travel arc without hesitation.
• High-Voltage Capability: Runs directly on modern receiver packs up to 8.4V, bypassing the need for external voltage regulators.
• Rapid Transit Time: Clocks in at 0.055 seconds for immediate steering adjustments through quick chicanes and high-speed sweepers.
• Digital Holding Power: Features high-resolution digital circuitry for precise centering, minimal deadband, and stable position holding.

Specifications

• Motor Type: Coreless
• Signal Type: Digital
• Operating Voltage: Up to 8.4V (HV compatible)
• Speed: 0.055 sec @ 8.4V
• Torque: 125.0 oz-in @ 8.4V

Pro-Tip: Always power on your radio and center your steering trim electronically before securing the servo horn. Ensure your ESC internal BEC or receiver battery is configured to output full high voltage to take complete advantage of the 8.4V speed and torque specs.
