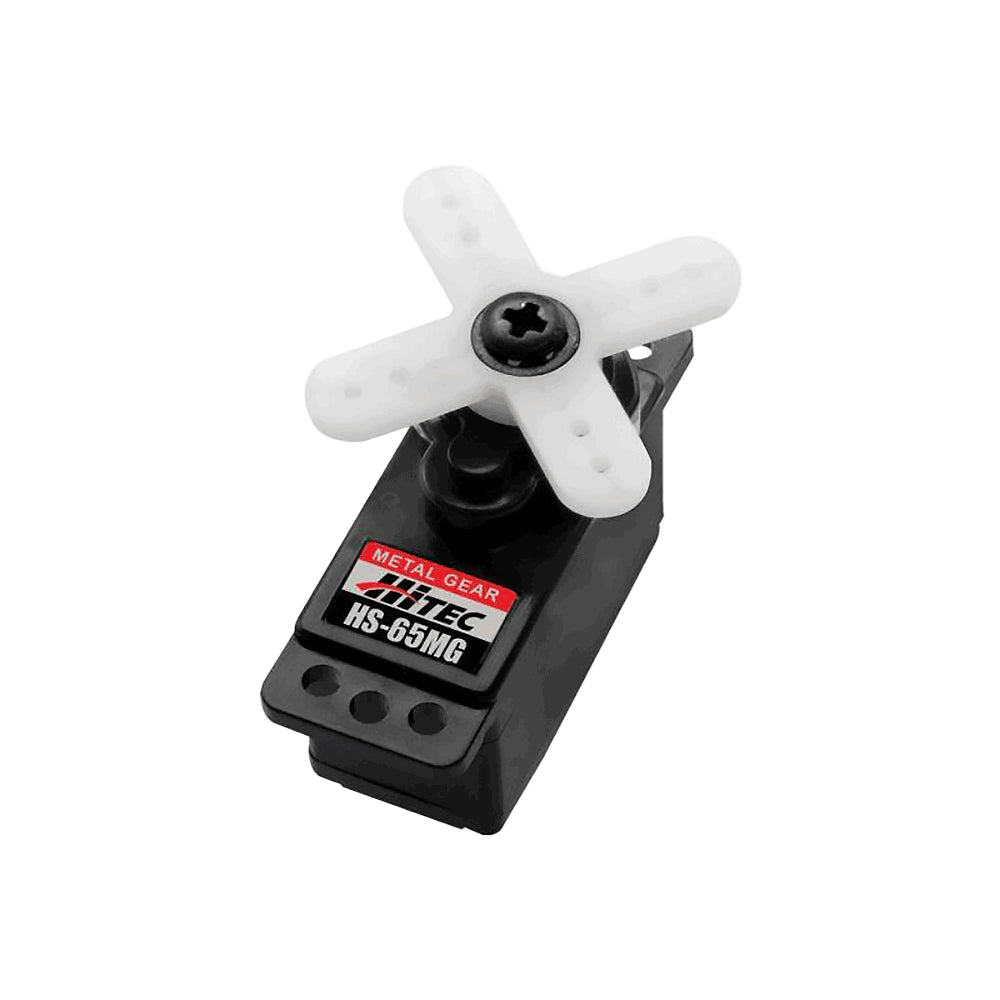

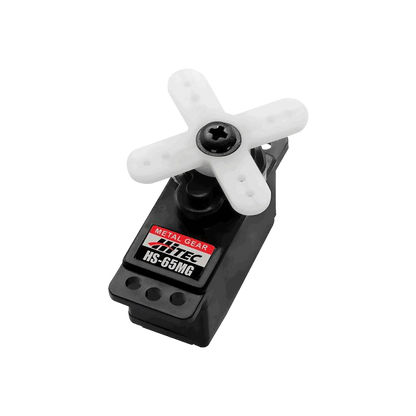

HS-65MG 11.9g Metal Gear Analog Micro Servo

HS-65MG 11.9g Metal Gear Analog Micro Servo

32065S

$32.99 USD
$32.99 USD
Sold out
Shipping calculated at checkout.

Out of stock
View full details

All the fine details

Considered one of the most powerful servos in the micro class, the HS-65MG is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

  • Top Selling Metal Gear Feather Servo
  • High Performance Three-Pole Motor
  • Rugged Metal Gear for Added Durability
  • Ball Bearing-Supported Output Shaft

HS-65MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 25 ~ 31
Maximum Torque Range kg. / cm. 1.8 ~ 2.2
Current Draw at Idle 8 mAh
No Load Operating Current Draw 220 mAh
Stall Current Draw 1200 mAh
Dead Band Width 5 µs

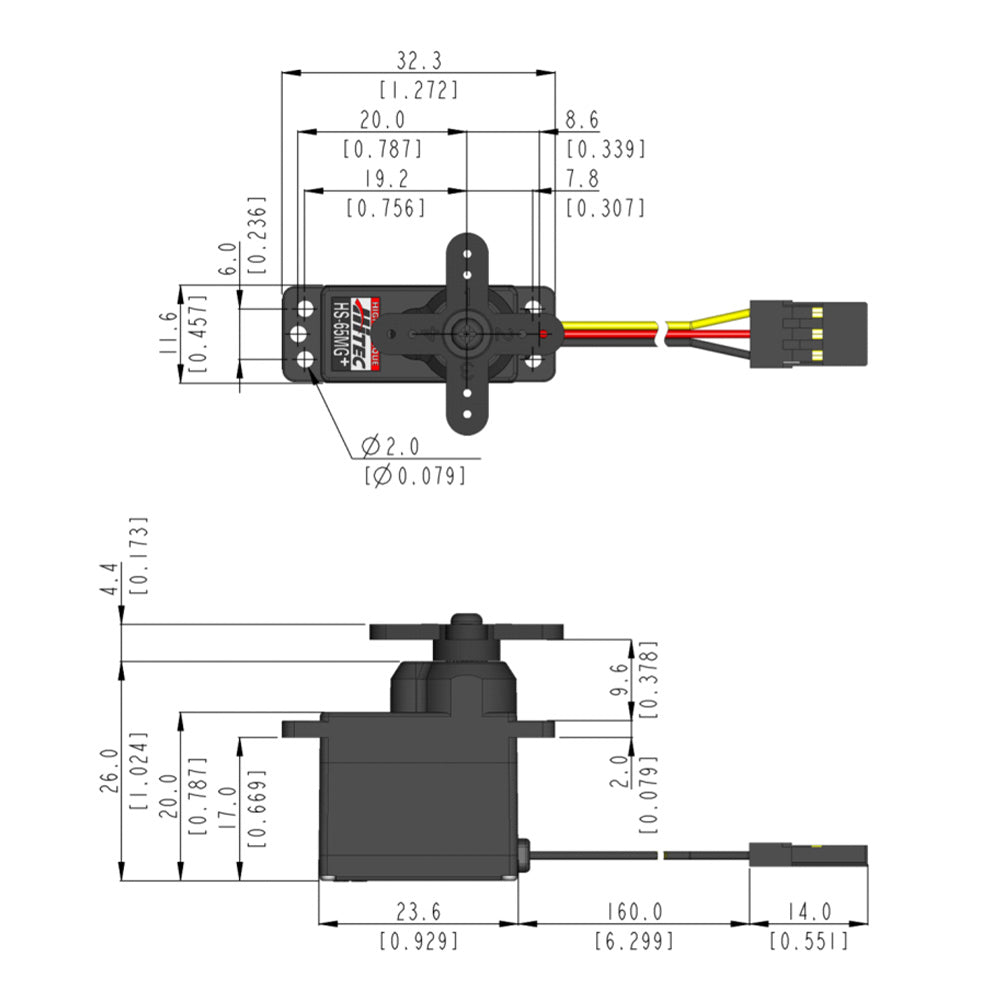

Physical Specifications
Dimensions (Inches) 0.92 x 0.45 x 0.94
Dimensions (Metric) 23.6 x 11.6 x 24.0
Weight (Ounces) 0.42
Weight (Gram) 11.9
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Neodymium
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Micro 25
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 42 oz.
Sport Plane 36 - 41 oz.
Sailplane < 2 meter / DLG
3D Performance Foamies
Scale N / A
Electric Helicopter 400 - 500mm
Gas Helicopter 30 - 39 Class
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck 1/8th
Crawlers N / A
Sail Boat N / A
Power Boat 1/8th
