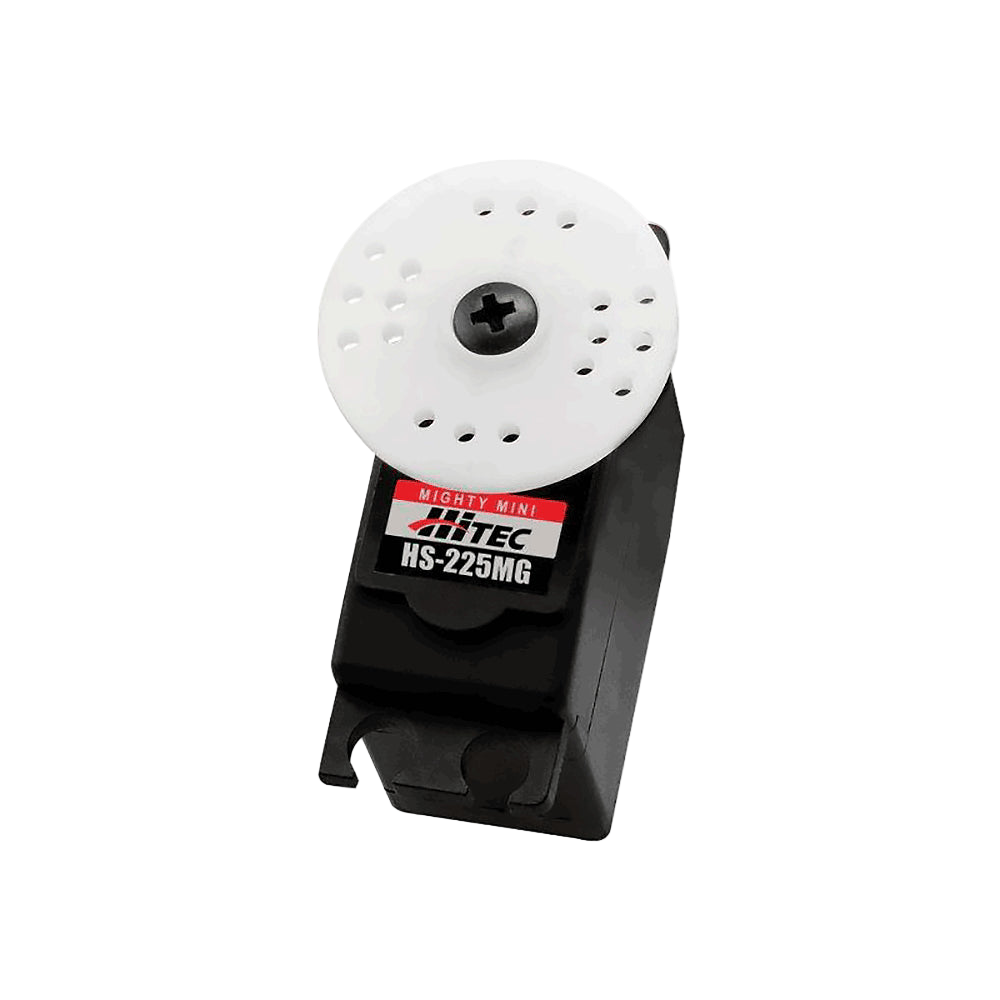

HS-225MG 31g Cored Metal Gear 24T Analog Mini Servo

HS-225MG 31g Cored Metal Gear 24T Analog Mini Servo

32225S

$27.99 USD
$27.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features

  • Full Size Performance in a Mini Package
  • Durable Metal Gears
  • Top Ball Bearings
  • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

HS-225MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 54 ~ 67
Maximum Torque Range kg. / cm. 3.9 ~ 4.8
Current Draw at Idle 8 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 1,200 mA
Dead Band Width 8 µs

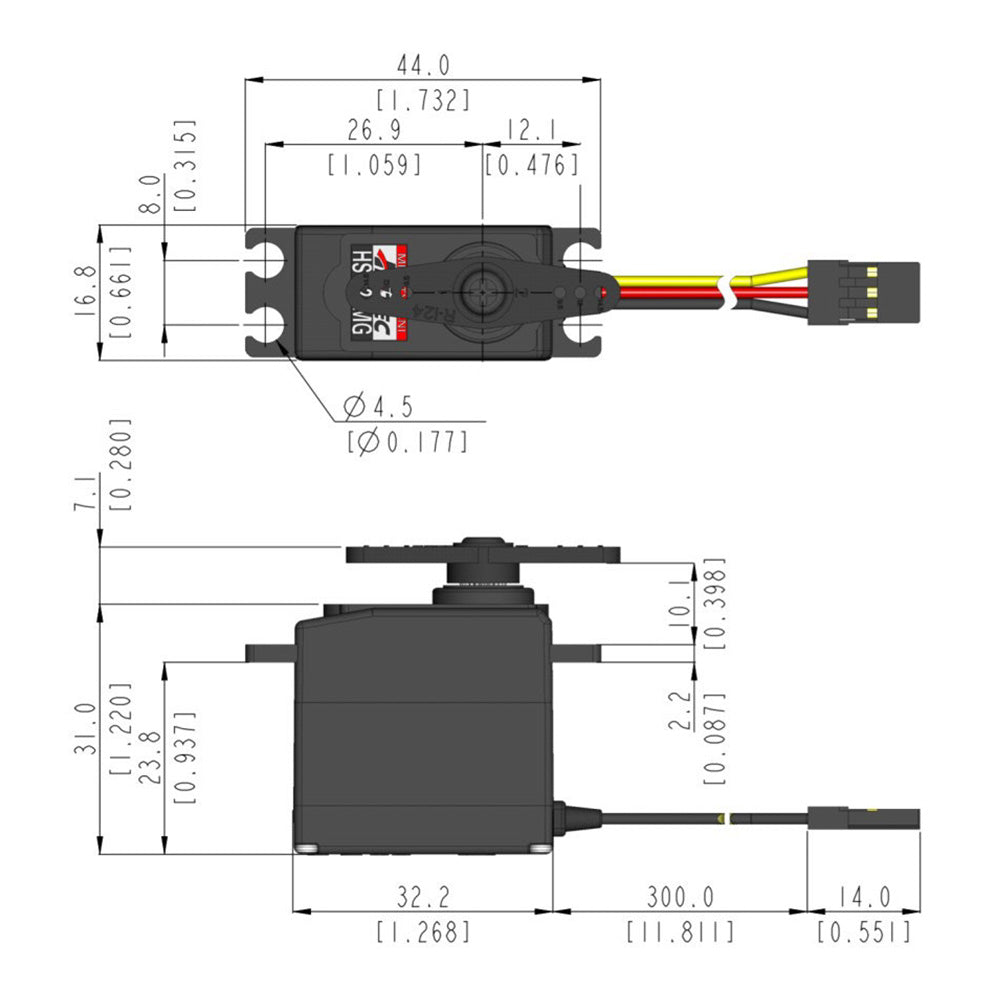

Physical Specifications
Dimensions (Inches) 1.27 x 0.66 x 1.22
Dimensions (Metric) 32.4 x 16.8 x 31.0
Weight (Ounces) 1.09
Weight (Gram) 31.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 3 meter
3D Performance 50 - 64 oz.
Scale N / A
Electric Helicopter 500mm
Gas Helicopter 50-59 Class
On Road 1/12th
Monster Truck N / A
Buggies 1/12th
Truggies N / A
Short Course / Truck N / A
Crawlers 1/8th
Sail Boat < 1 meter
Power Boat 1/16th
