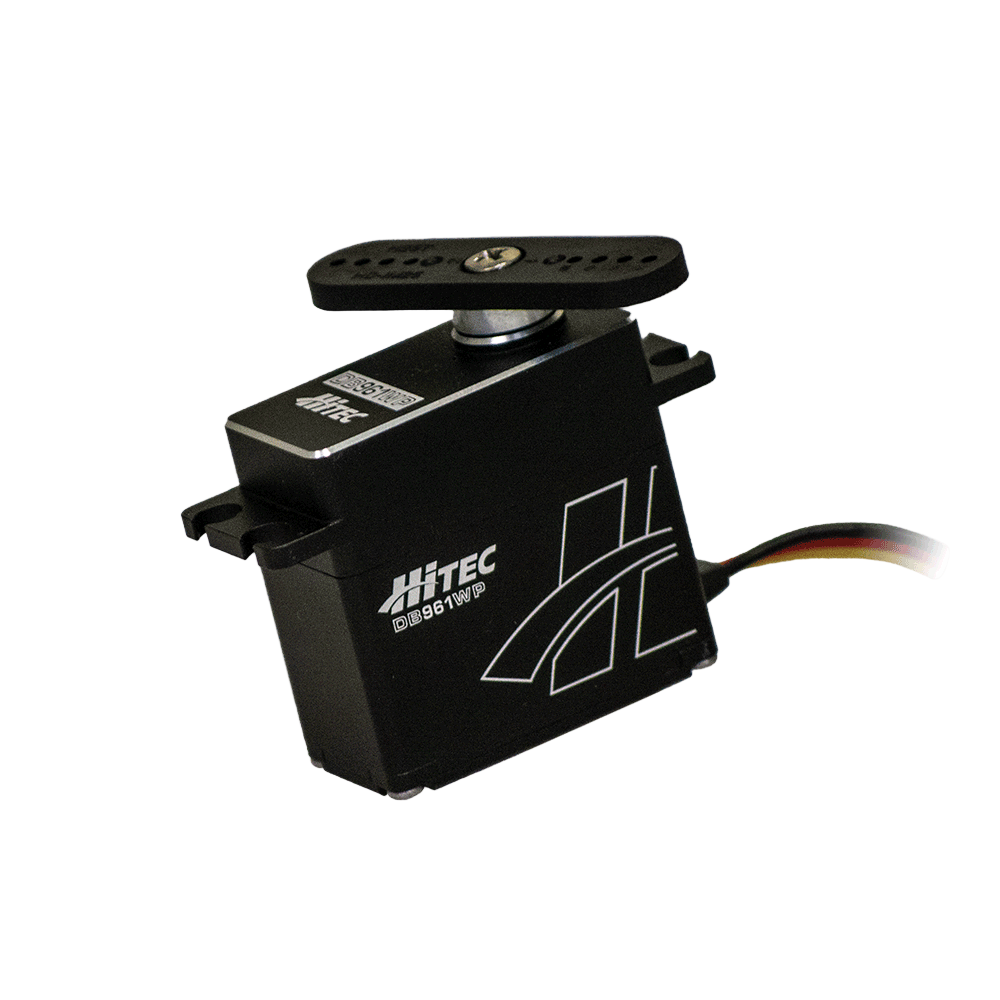

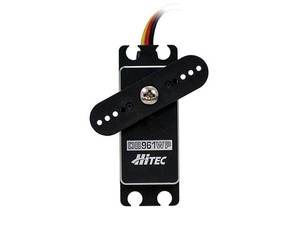

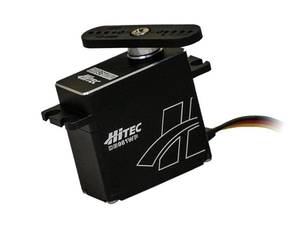

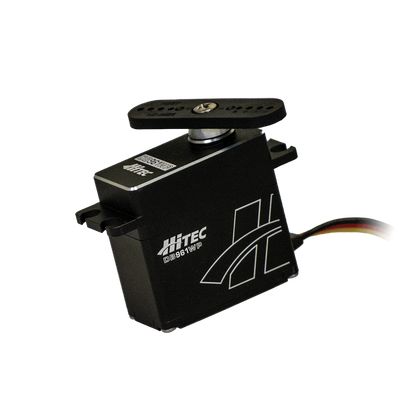

DB961WP Ultra-Premium, Brushless, Hardened Steel Gear, Waterproof Servo (25T Spline)

HitecSKU: 36961S

Price:
Sale price$179.99
Stock:
Sold out

Description

Now more than ever, today's competition quality off-road vehicles and giant scale aircraft demand uncompromised quality and performance in the never-ending race for gold. The Ultra-Premium DB961WP answers that call for increased durability, providing the Pro-Class dependability and reliability you demand, regardless of your mission. Coupling massive torque and high speed with its wide voltage range and high resolution/low deadband circuitry, the DB961WP will deliver your hobby to a new level.

Features:

  • Voltage Range is 4.0V - 8.4V
  • Torque: 763 in./oz. @6V & 7.4V
  • Optimized for up to 2-Cell LiPo Use
  • Ultra-Performance Brushless Motor
  • 32-Bit MCU Technology / 4096 Resolution
  • High Resolution/Low Deadband Circuitry
  • User Programmable Thermal Cutoff
  • Full Programmability
  • IP67 Waterproof Rating
  • Smart Sense Technology for Servo Analytics
  • H25T Industry Standard Output Spline



Performance Specifications:

  • Operating Voltage Range (Volts DC): 4.0V ~ 8.4V
  • Speed (Second @ 60 degrees): 0.15 @ 7.4V
  • Maximum Torque Range oz. / in.: 763.81 @ 7.4V
  • Maximum Torque Range kg. / cm.: 55.0 @ 7.4V
  • Current Draw at Idle: 35mA @ 7.4V
  • No Load Operating Current Draw: 500mA @ 7.4V
  • Stall Current Draw: 6,500mA @ 7.4V
  • Dead Band Width: 1us

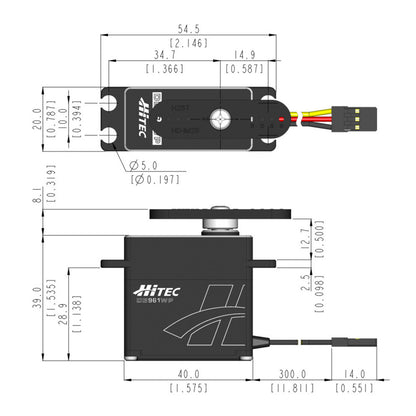

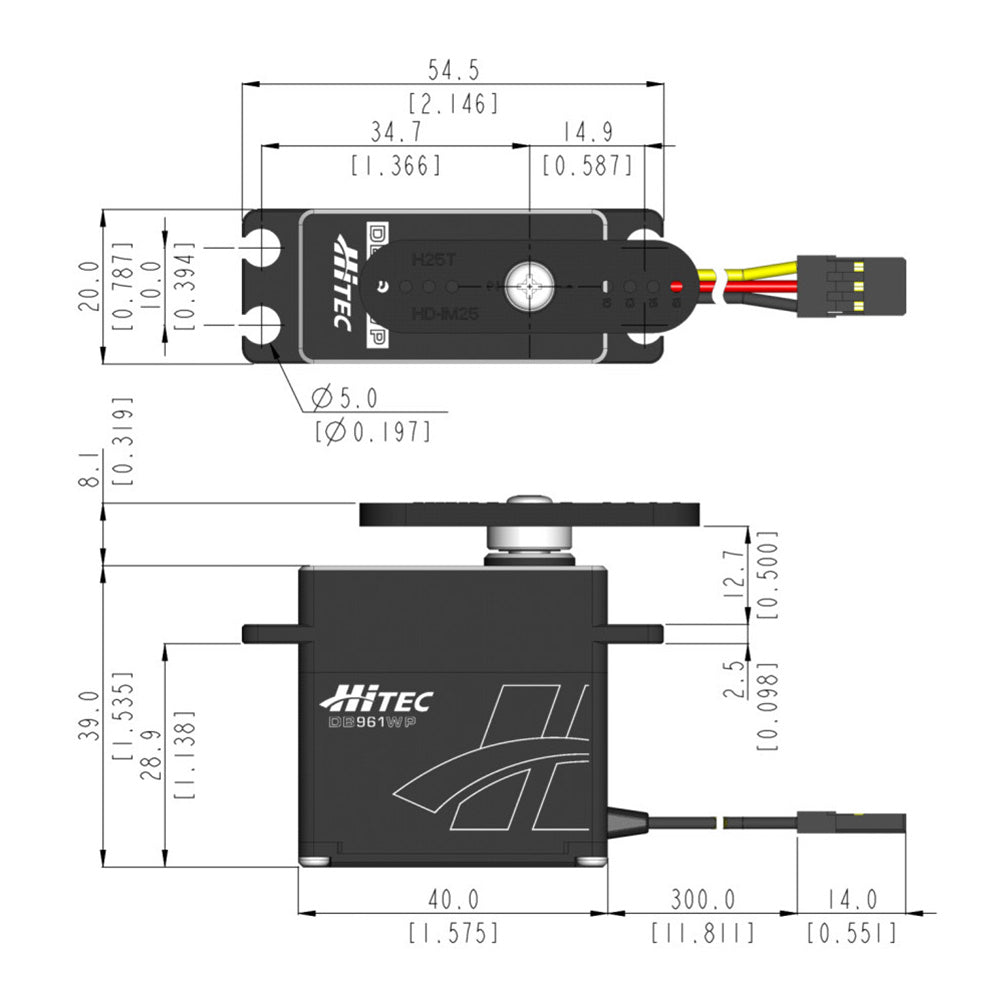

Physical Specifications:

  • Dimensions (Inches/mm): 1.58 x 0.79 x 1.54 in. / 40.0 x 20.0 x 39.0
  • Weight (Ounces / Grams): 3.18 / 90.0
  • Circuit Type: 32bit Programable Digital
  • Motor Type: Brushless
  • Gear Material: 5 Steel Gears
  • Bearing Type: 2 Ball Bearings
  • Output Shaft: H25T
  • Case Material: Aluminum
  • Dust / Water Resistance: IP67 Rated
  • Connector Gauge (AWG) / Strand Count: 20AWG
