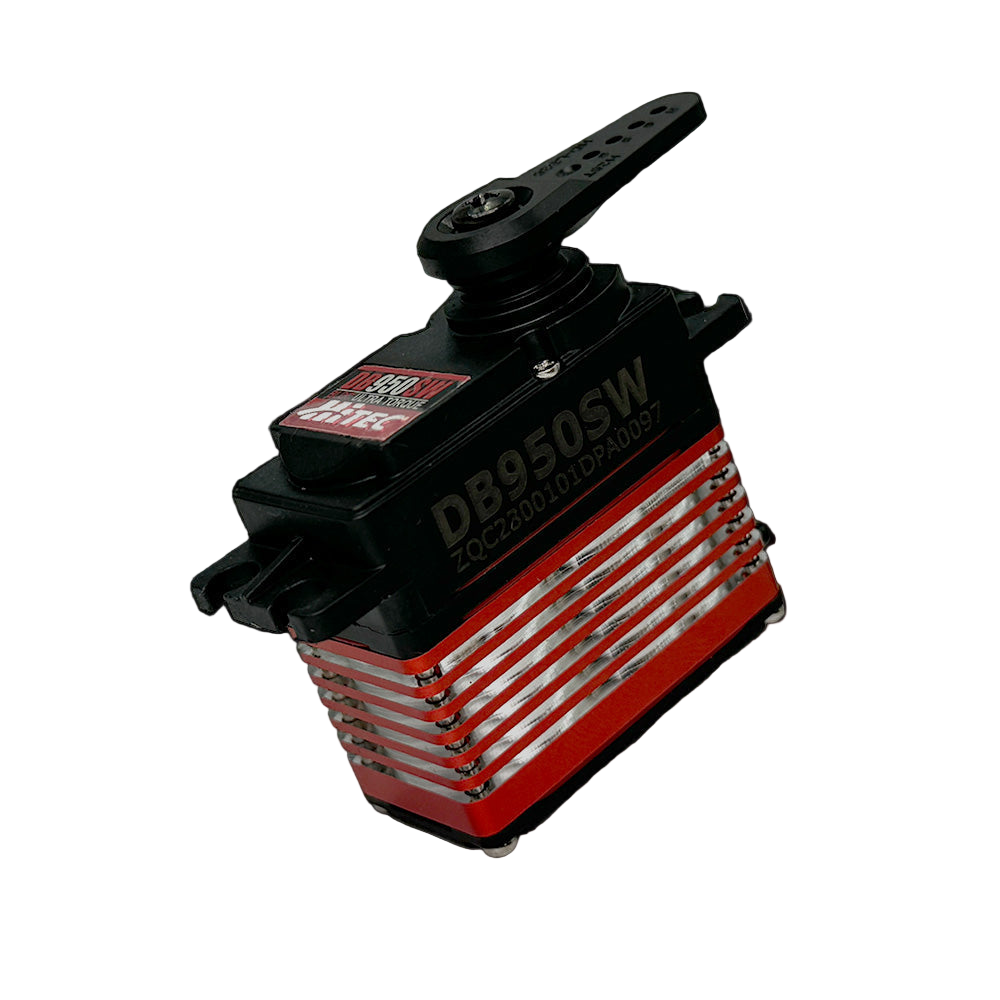

DB950SW Wide Voltage Steel Gear 25T Digital Brushless Servo

The new Brushless DB950SW is the latest addition to our DB-Series servo line. All Hitec DB-Series servos have been designed using our cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, along with an ultra efficient and powerful Brushless motor, these servos deliver significantly smoother movement. This powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring an industry standard 25-tooth output spline with 3mm hex screw, and steel gears for maximum durability.

Features

• Programmable PWM Digital Amplifier
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Dual Ball Bearing Supported Output Shaft
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case



Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

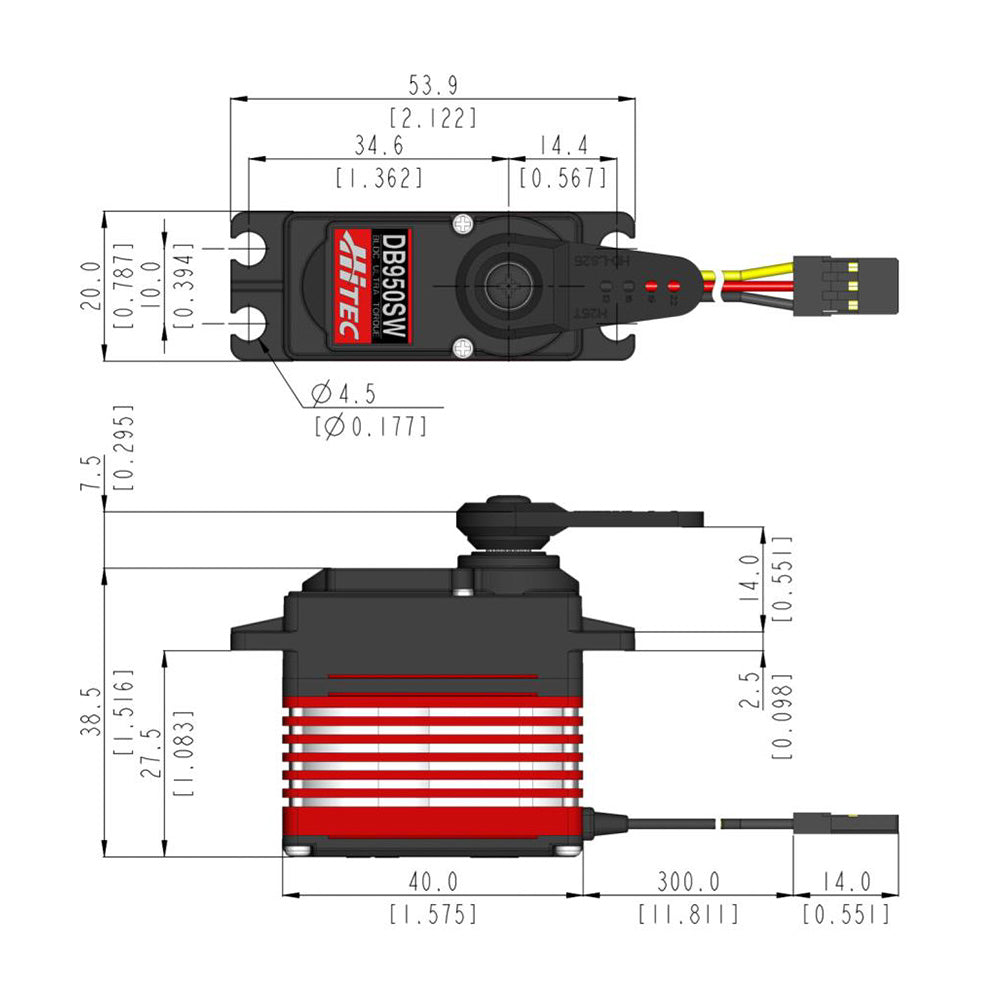

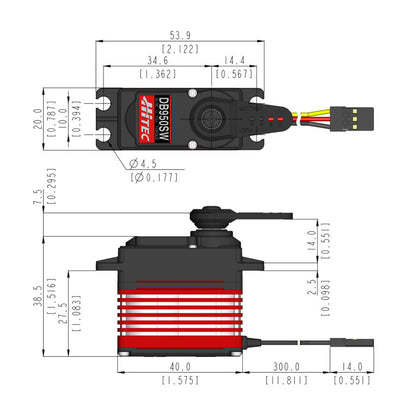

DB950SW Servo Specifications
