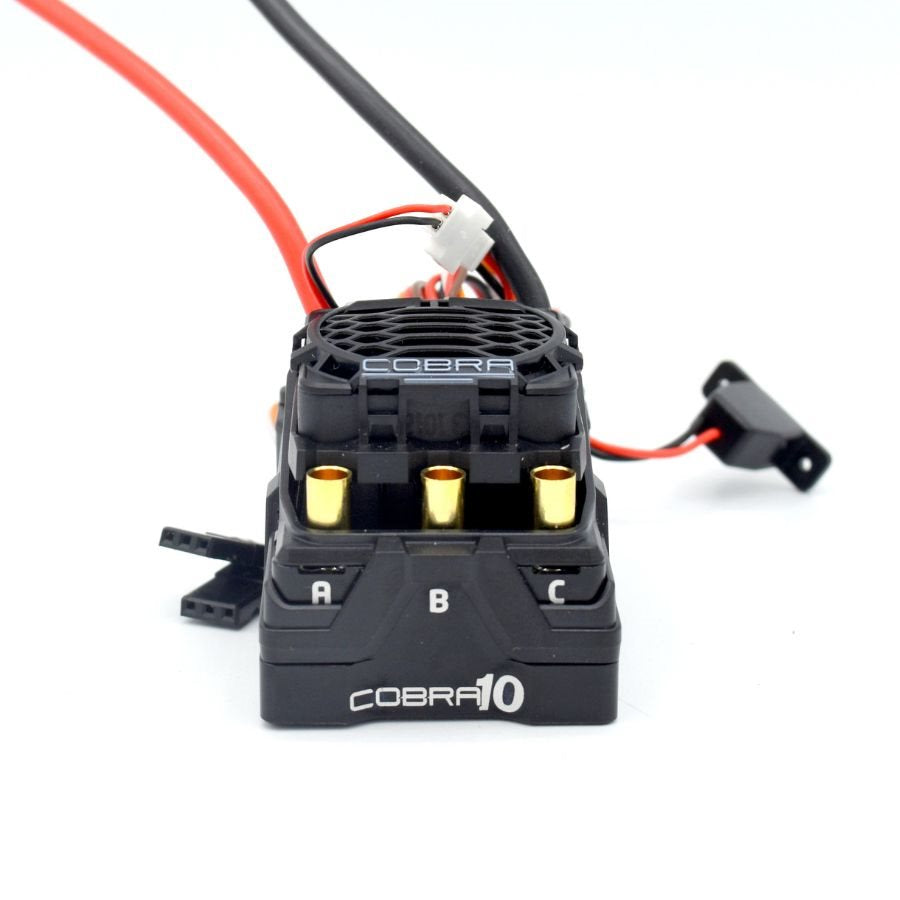

Cobra 10 2-6S Waterproof Sensored ESC

Castle CreationsSKU: 010-0174-00

Price:
Sale price$179.99
Stock:
Sold out

Description

Cobra 10

We're thrilled to introduce the Cobra 10, our next generation electronic speed controller (ESC) for surface applications.

TheCobra 10 boasts a state-of-the-art 32-bit, dual-core processor,ushering in a new era of precision and performance. Its enhanced datalogging capabilities offer extended recording times, faster samplingrates, and a wealth of data points, enabling users to delve deeper intotheir vehicle's performance than ever before.

Crafted with a CNCaluminum bottom case, the Cobra 10 is engineered to endure the mostrigorous conditions, ensuring reliability in every race or off-roadadventure.

One of its defining features is our acclaimed CRYO-DRIVE™technology, engineered to reduce operational temperatures,significantly prolonging the ESC's lifespan. Moreover, equipped with animpressive 8-amp BEC, the Cobra 10 can effortlessly power the mostdemanding servos, making it an indispensable ally in yourhigh-performance setup.

We’ve packaged the Cobra 10 with 16different Castle 4 -POLE 12-SLOT motor options to overpower a wide rangeof 1:10th scale vehicles.

NEW FEATURES:

  • 32-Bit Processing power for smoother motor control and improved response time.
  • Enhanced Data Logging includes:
    • Double the maximum sample frequency of older generations.
    • 8x increased logging time of older generations.
    • Data point for ESC electrical motor timing.
    • Data point for acceleration via onboard accelerometer.
    • Looping feature prevents interruptions in data log recording.
    • Ability to download specific sessions.
  • New Feature: Hill Hold - Extremely strong drag brake engagement for rock crawling.
  • Additional tuning features include:
    • Improved braking adjustability
    • Separate brake and reverse curves
    • Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
  • Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
  • Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)

MORE FEATURES:



  • Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 30mm cooling fan
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Cobra 10 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty



COBRA 10 COMES WITH:

  • Cobra 10 ESC
  • Castle Link V4 USB Adapter
  • 250mm Direct Connect Sensor Wire
  • Castle Decals
  • ESC Quick Start Guide



Technical Specs
Controller
Input Voltage Range: MIN: 2s LiPo,  MAX:  6s LiPo (25.2 V)
BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
 Running Modes:  SmartSense Brushless, Sensored Only, Brushed
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (25mm),temperature controlled
Size: 55.9mm x 38.3mm x mm (2.2" x 1.51" x 1.44")
Weight (with no battery connector): 4.02oz (114g)
Battery Wire: 12AWG
Connectors: 4.0mm female bullets for motor connection, matching 4.0mm male bullets required
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 70+ amps, such as Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
soldered to the battery leads.
Product Use Statements:

Not intended for drag racing applications.

*Although Cobra 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Application Guidelines:  Cobra 10 is designed for use in 1:10 scale vehicles weighing up to 7lbs and 1:8 scale buggies geared for off road racing weighing up to 9lbs.
Recommended Motors: Castle 1406, 1410, 1412 and 1415 Sensored motors and some 15 series for e-buggy setups
Programmability:
Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required)
Castle Link Mobile App (B-Link):
In development
Tech Tips:
  • Cobra 10 setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  • Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
  • Applying voltages higher than 25.2V will cause irreparable damage to ESC.
