CC BEC 2.0 15A Max Output 14S Waterproof (CSE010015300)
CC BEC 2.0 15A Max Output 14S Waterproof (CSE010015300)
SKU:010-0153-00
Low stock: 1 left
Couldn't load pickup availability
Overview

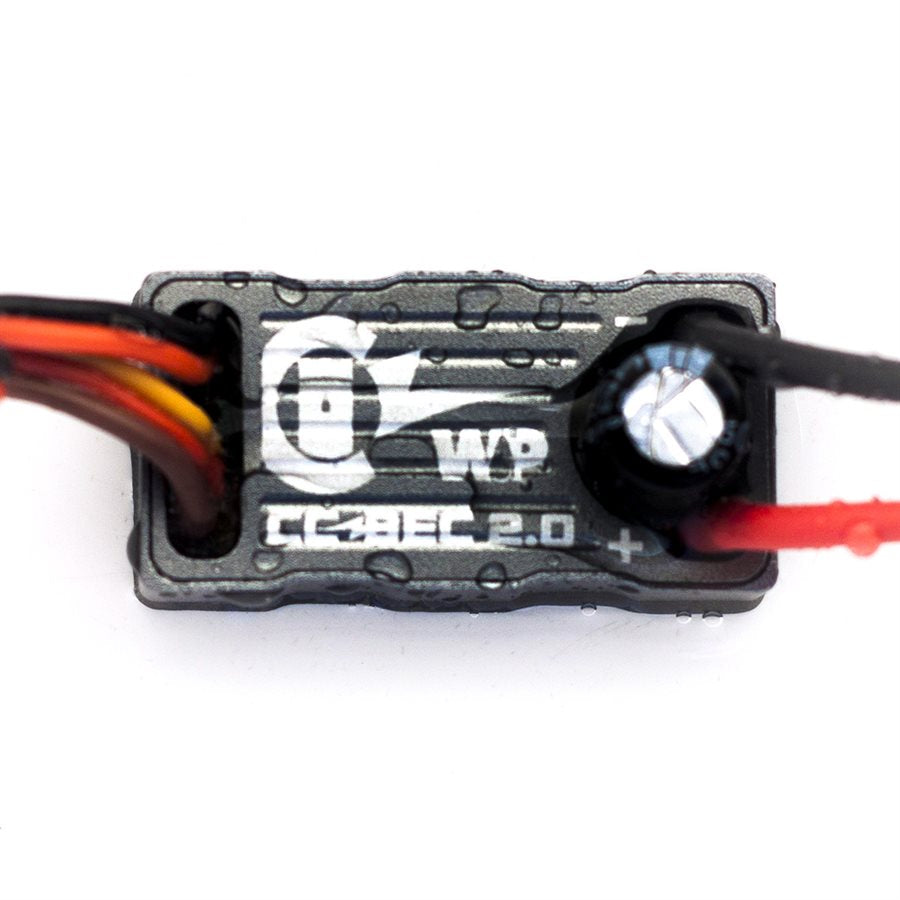

Designed and assembled in the USA, the Castle Creations' CC BEC 2.0 is a small, lightweight (0.7 oz.) design capable of 15 amps peak, perfect for sport flying, helicopters, and UAVs. Racers, crawlers, and other splashers can now integrate a 15 amp peak power regulator in a waterproof (WP), CNC machined, aluminum case that can handle up to an impressive 14S without brake enabled or 12S with brake.
| CC BEC Comparison Chart | ||||
|---|---|---|---|---|
|
CC BEC 1.0 |
CC BEC Pro | CC BEC 2.0 | CC BEC 2.0 WP | |
| Part Number: | 010-0004-00 | 010-0004-01 | 010-0154-00 | 010-0153-00 |
| Common applications: | Crawlers, Racing, Sport Planes, Night Flyers | Helis, 1/5th Scale Cars, Giant Scale Planes, UAS | Helis, Planes, UAS, Racing | Crawlers, Marine, Sea Planes, UAS, Industrial |
| Waterproof: | No | No | No | Yes |
| Peak current: | 10A | 20A | 14A (dependent upon input and output voltage) | 15A (dependent upon input and output voltage) |
| Continuous current1: | 2S-3S: 7A 4S-6S: 5A |
2S-4S: 15A 5S-6S: 13A 7S-8S: 11A 9S-10S: 9A 11S-12S: 8A |
4.75-7.0V output: 9A 7.25V-8.5V output: 8A 8.75V-10.0V output: 7A 10.25-12.0V output: 6A |
4.75- 6.0V output: 10A 6.25-8.5V output: 9A 8.75-10.0V output: 8A 10.25-12.0V output: 7A |
| Max volts: | 6S (25.2V) | Surface: 8S (33.6V) Air (w/Brake): 10S (42.0V) Air (No Brake): 12S (50.4V) |
Surface: 12S (50.4V) Air (W/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
Surface 12S (50.4V) Air (w/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
| Adjustable output voltage2: | 4.8 to 9V | 4.9 to 12.5V | 4.75 to 12V | 4.75 to 12V |
| Default setting: | 5.1V | 5.1V | 5.25V | 5.25V |
| Length: | 1.7" (43mm) |
1.86" (47mm) | 1.69" (43mm) | 1.37" (35mm) |
| Width: | 0.57" (15mm) |
1.30" (33mm) | 0.56" (14mm) | 0.69" (18mm) |
| Height: | 0.48" (12mm) | 0.86" (22mm) | 0.32" (8mm) | 0.75" (19mm) |
| Weight3: | 0.53 oz. (15.2g) | 1.4 oz. (40g) | 0.7 oz. (21g) | 1.0 oz. (28g) |
Footnotes:
1. Ratings are determined with a 5mph airflow at 25° C (77° F). Ratings for CC BEC 2.0 are dependent on both input and output voltage as follows:
| CC BEC 2.0 WP (010-0153-00) Peak Current Rating Detail | |||||||
|---|---|---|---|---|---|---|---|
| Output Voltage Setting | |||||||
| LiPo Cells | < 5.5V | 6V | 7V | 8V | 9V | 10 & 11V | 12V |
| 8S-14S | 15A | 14A | 13A | 12A | 11A | 10A | 9A |
| 4S-6S | 14A | 13A | 12A | 12A | 11A | 10A | 9A |
| 3S | 13A | 12A | 11A | 11A | 10A | - | - |
| 2S | 12A | 11A | 11A | - | - | - | - |
2. Adjustable Output Voltage may be set with Castle Link (sold separately).
3.Weight with full length wires, power wires may be shortened to save weight depending on application.
| Resources |
|---|
|
Header Card Instructions |
Tech Note: Do not connect 3-wire lead (brown/red/orange) to the bind port on Spektrum receivers. This can cause some Spektrum receivers to go into bind mode. You can connect the 2-wire (black/red) to the bind port.
