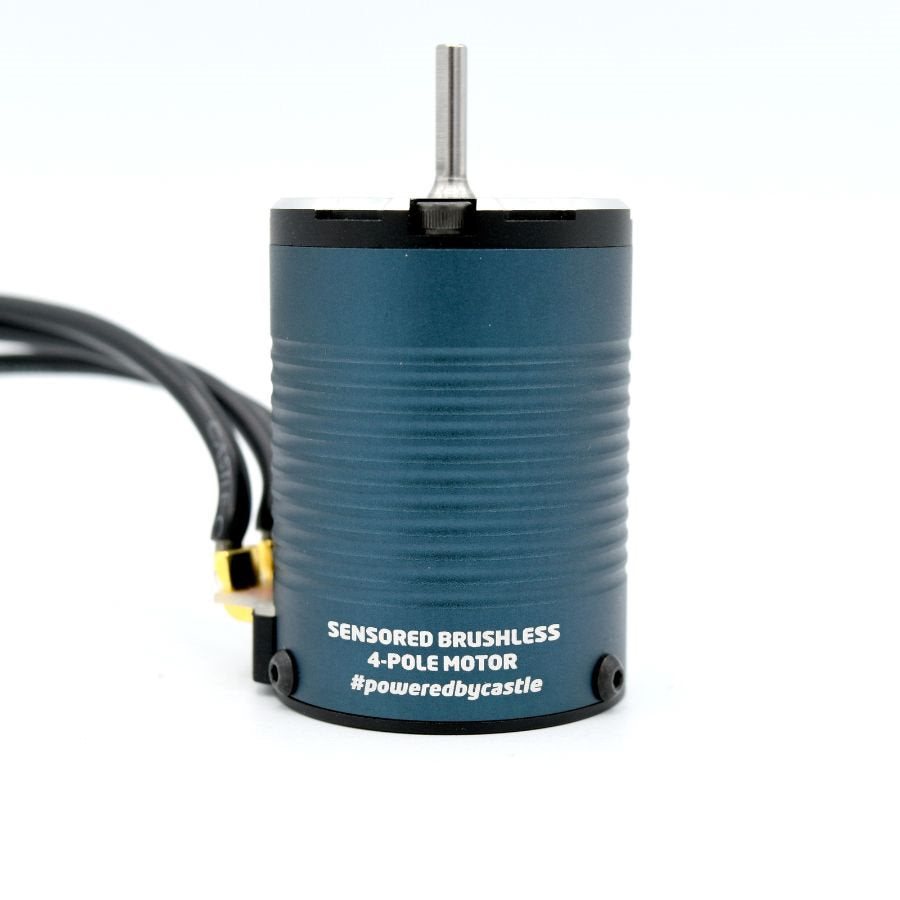

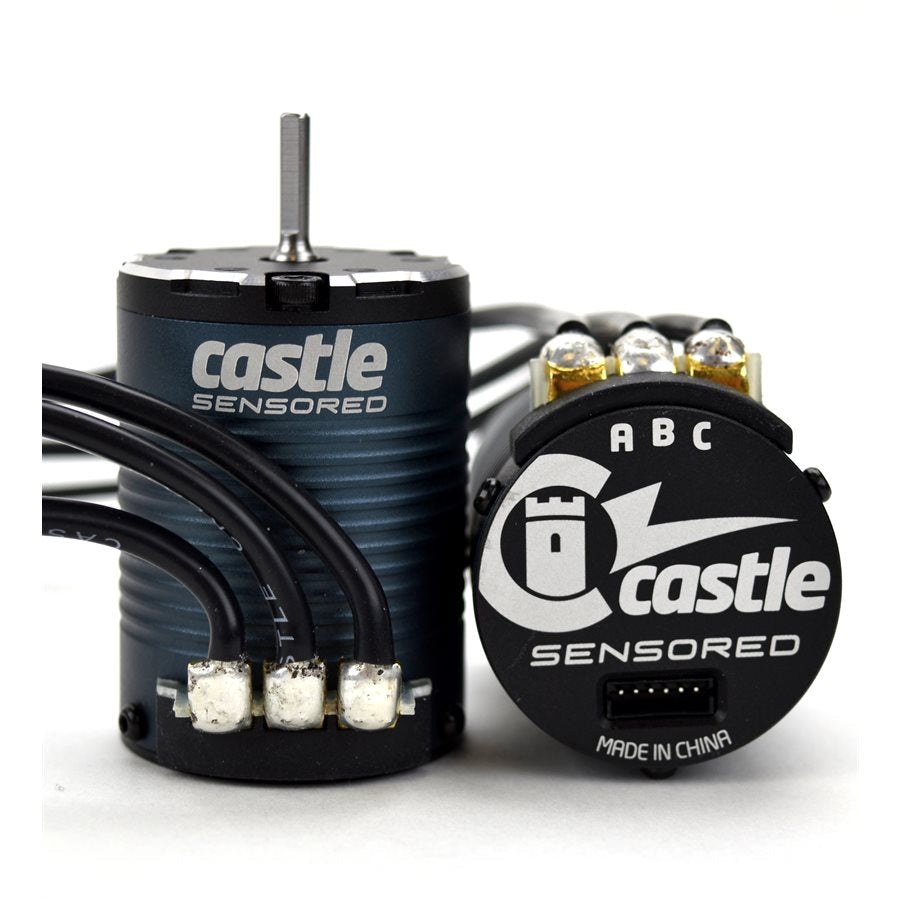

1406 "Slate" Sensored 4-Pole Brushless Crawler Motor (2850kV)

1406 "Slate" Sensored 4-Pole Brushless Crawler Motor (2850kV)

SKU:060-0070-00

Regular price $104.99 USD
Regular price Sale price $104.99 USD
Shipping calculated at checkout.

Low stock

Quantity
View full details

All the fine details

MOTOR  APPLICATION
1406-2850Kv   Ideal for 1/10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2s-4s with appropriate gearing.



MOTOR FEATURES:




  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • Oversized gold-plated solder tabs for LESS RESISTANCE and easy soldering.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Proudly designed and supported in Kansas, USA.
  • Backed by Castle Creations 1-YEAR WARRANTY.

COMPONENTS OF THE HIGHEST QUALITY:




  • High strength 180°C grade neodymium sintered magnets
  • 13 AWG high strand count wire with silicone insulation
  • 6061-T6 aluminum heatsink can
  • High quality, temperature-stabilized sensors
  • High-purity, high-temperature copper windings
  • High RPM NMB oversized bearings
  • Hardened stainless steel shaft
  • Stacked stator with high quality 0.2mm steel laminations
  • Kevlar wrapped rotor
