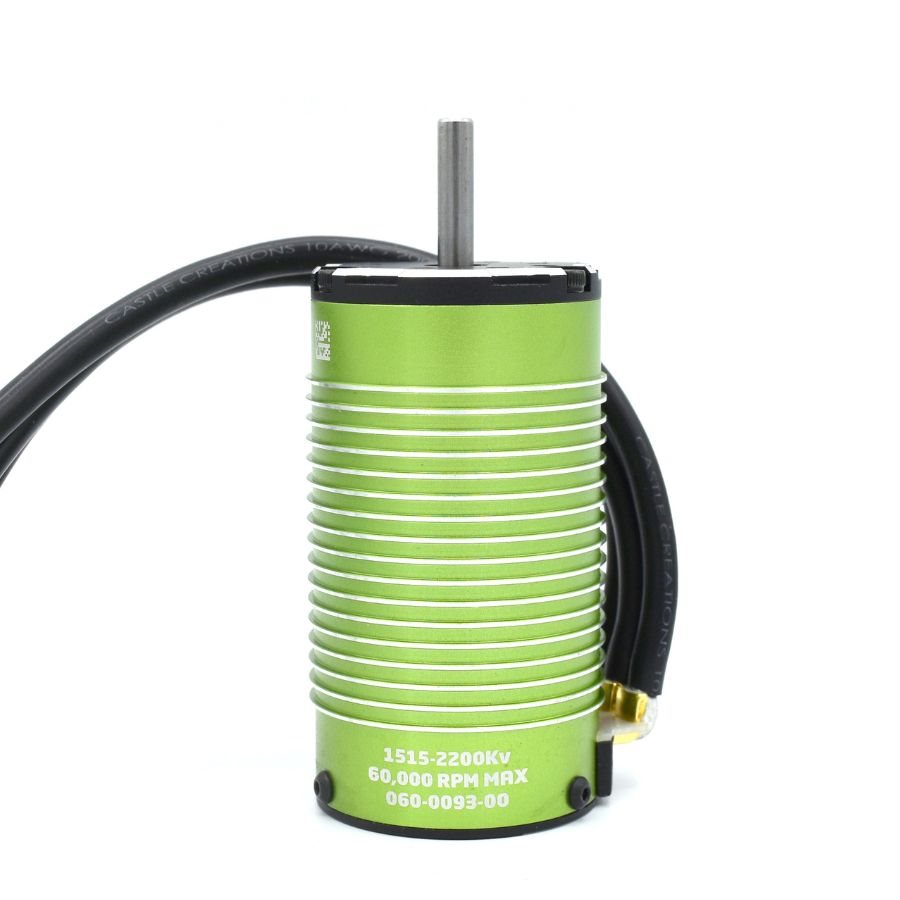

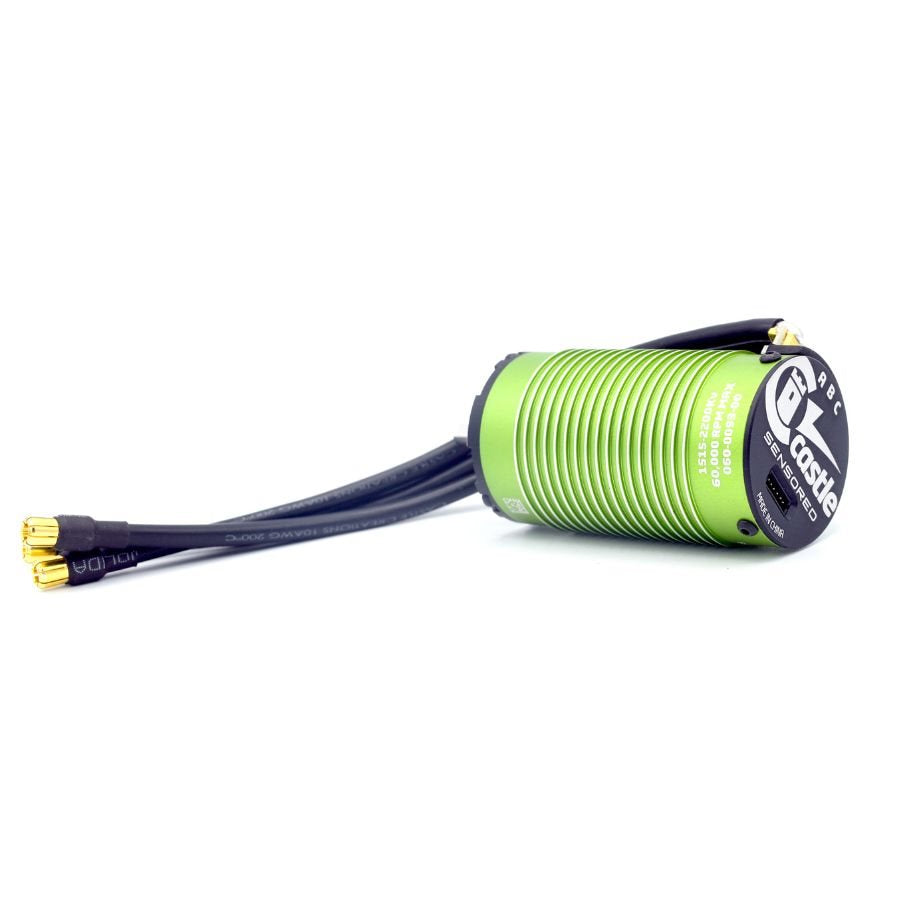

1515 Sensored 4-Pole Brushless Motor (2200kV V2)

1515 Sensored 4-Pole Brushless Motor (2200kV V2)

SKU:060-0093-00

Regular price $174.99 USD
Regular price Sale price $174.99 USD
Sale Sold out
Shipping calculated at checkout.

2 in stock

Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 6S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : No

1515-2200Kv V2 FEATURES:




  • Input Voltage range: 2s-6s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets



  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY





Additional product details found under MORE FEATURES and SPECIFICATIONS

1515-2200Kv V2 APPLICATIONS:

Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15 lbs.

Vehicle examples: ARRMA Typhon, Kraton, Nero, Infraction, Talion, Felony; Traxxas Sledge, Summit; HPI Savage; LOSI LMT



Technical Specs
Input Voltage Range: 2S-6S LiPo
Kv: 2200
Max. RPM: 60,000
Size: Length: 75.4mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 426g (15.1oz) ; 380g without wires
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: 011-0139-00
Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
Recommended ESC(s): Cobra 8Monster X ESCSidewinder 8
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored (with Sensored capable ESC), Sensorless

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Comparable Turn Count:
Resources
Sensored Motor Quick Start

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Motor designed in Olathe, Kansas USA.
Motor made in China.
