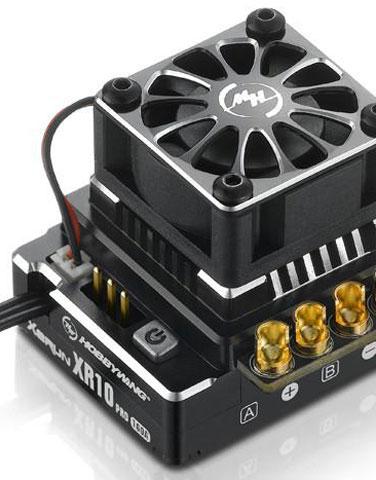

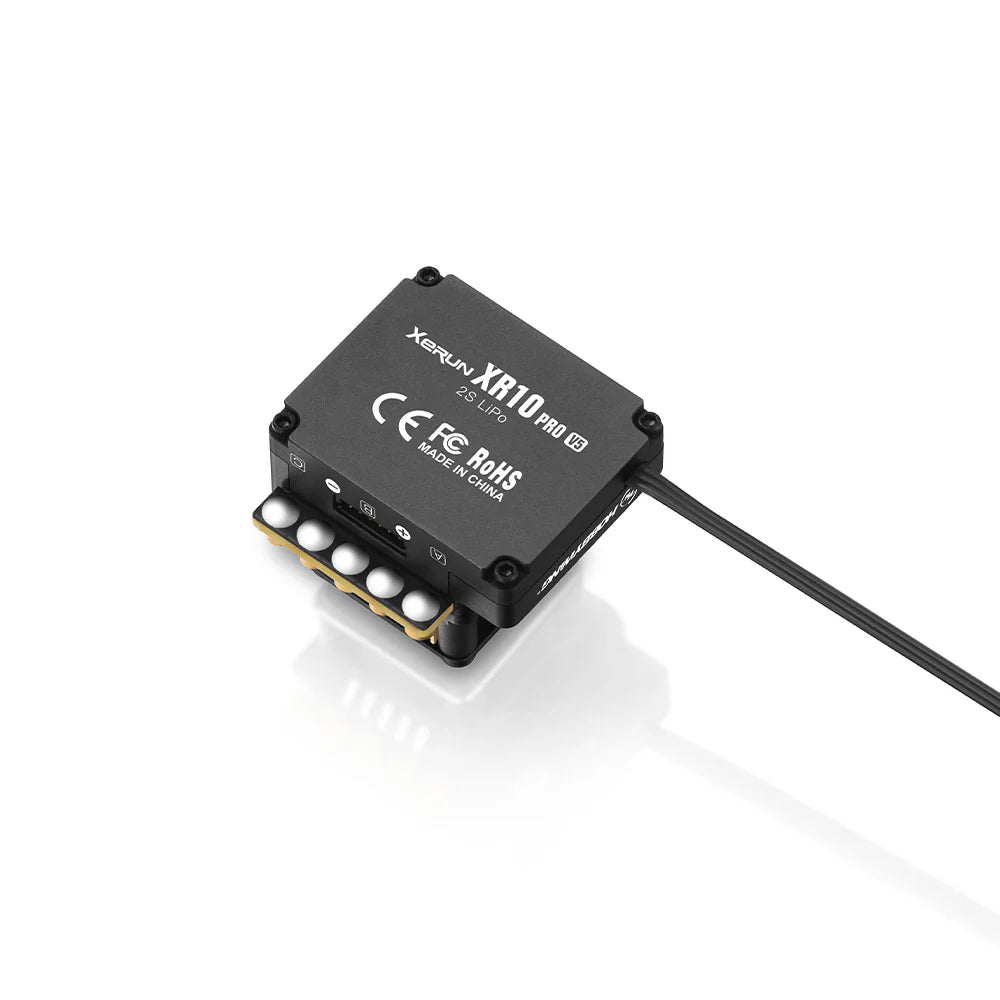

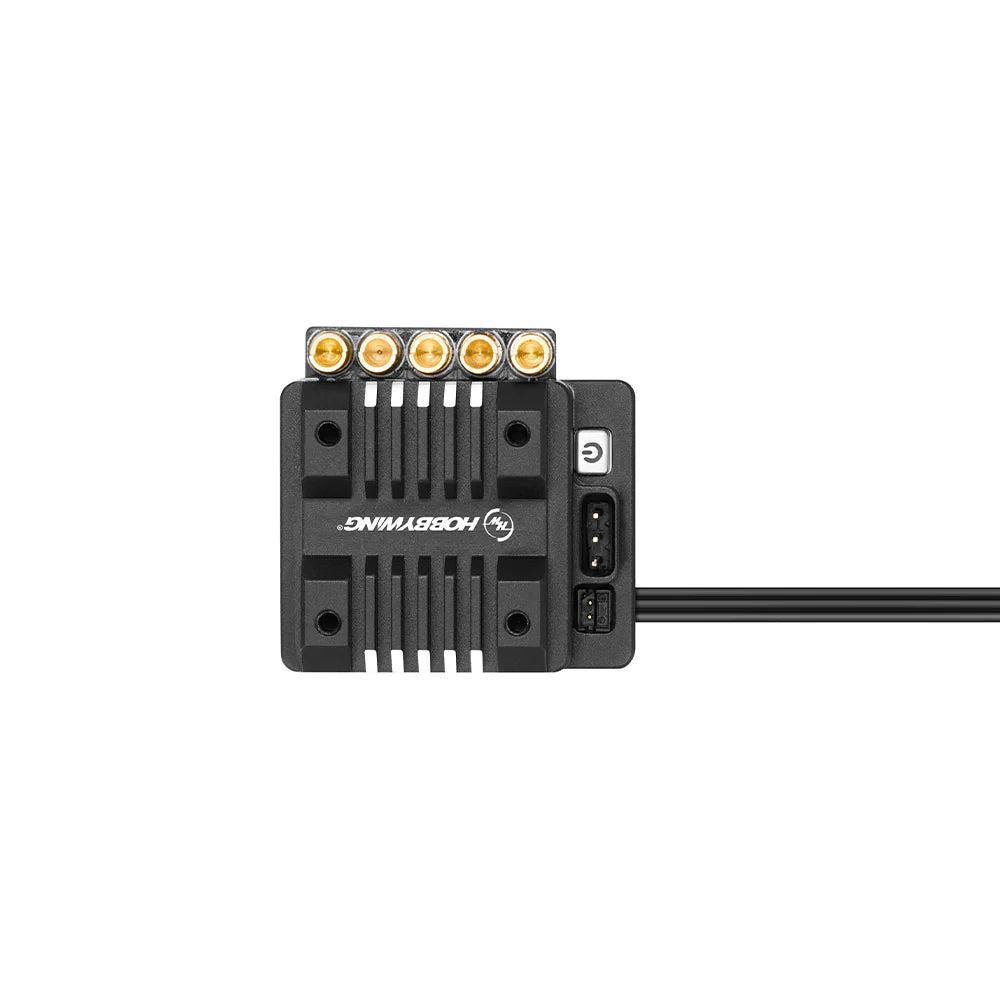

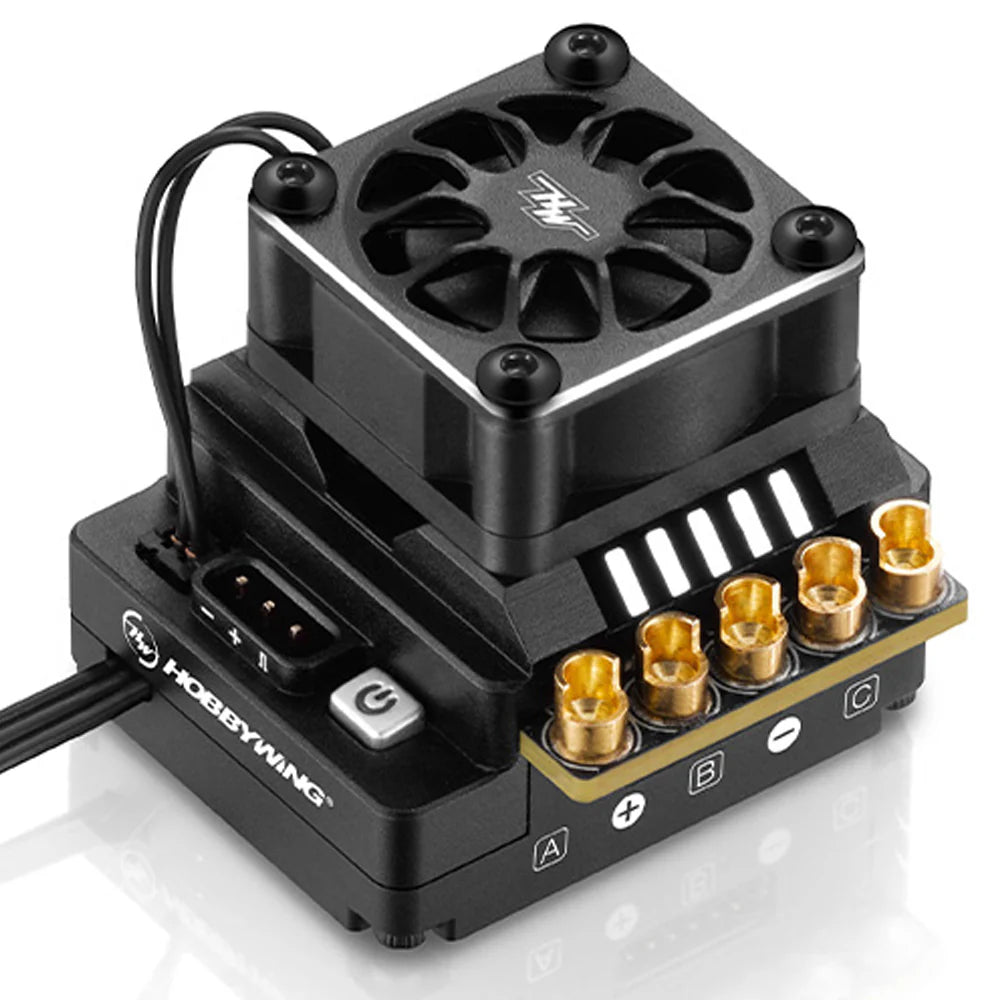

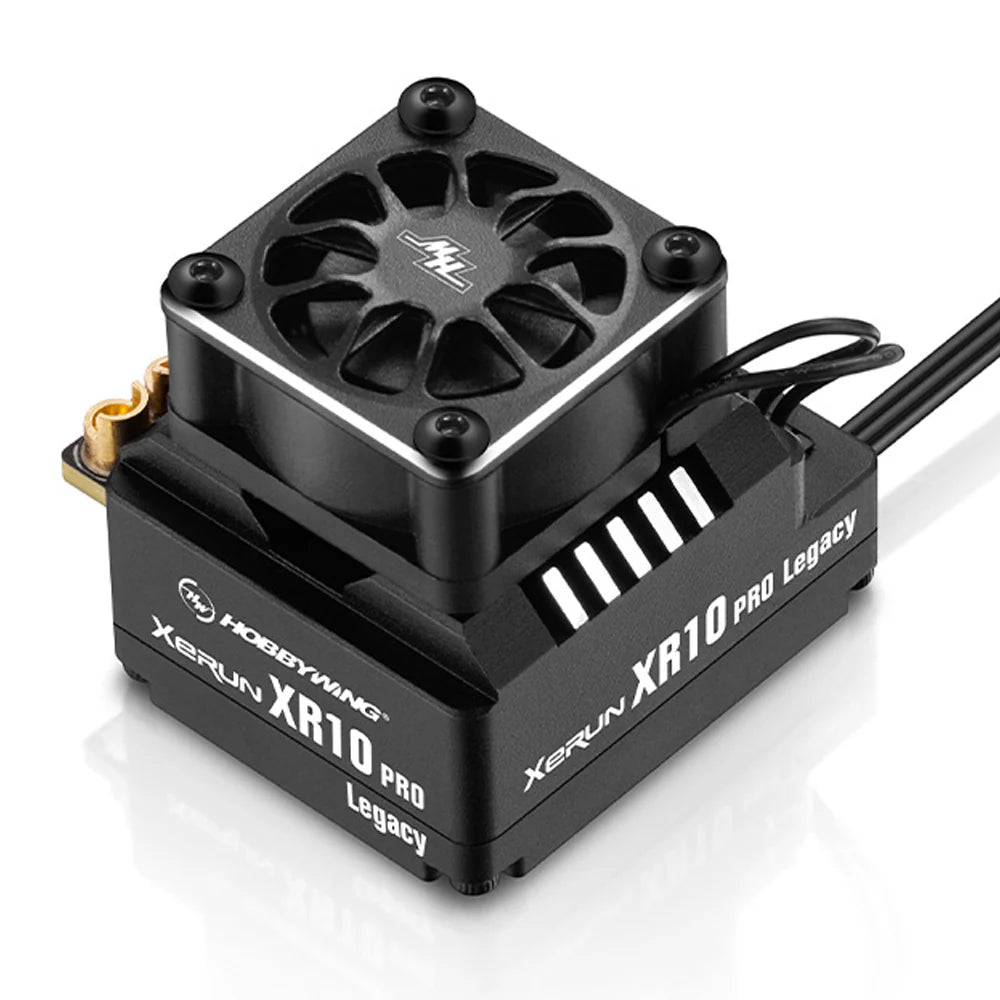

Hobbywing XR10 PRO Legacy Edition V2 1/10 Sensored Brushless ESC

The legendary XR10 PRO is back and bolder than ever, delivering championship-tier power delivery without breaking the bank.

The Hobbywing XR10 PRO Legacy Edition V2 brings high-end race tech to both Modified and Stock 1/10 classes. Powered by an advanced 32-bit M4 processor, this speed controller calculates complex data with lightning speed for razor-sharp throttle and brake response. Whether you are running a razor-sharp touring car or a high-grip 2WD buggy, the XR10 PRO Legacy V2 provides the smooth, predictable feel you need to consistently hit your apexes.

Built for the rigors of competitive racing, this 2026 version introduces a suite of reliability upgrades. From its intelligent start/stop fan technology to the built-in reverse polarity protection circuit, it’s designed to keep you on the track and out of the pits. Paired with Hobbywing's innovative Softening Function, you can easily dial in your bottom-end power delivery to suit slick, blown-out, or dusty track conditions.

Why You'll Love It

• 32-Bit M4 Processor: Delivers ultra-fast signal processing, guaranteeing a rapid, connected response between your trigger finger and the motor.
• Reverse Polarity Protection: An integrated safety circuit prevents catastrophic ESC damage in the event of an accidental backward battery connection.
• Intelligent Fan Tech: The cooling fan only activates when temperatures rise, reducing noise and drastically extending the life of the fan motor.
• Advanced Softening Function: Fine-tune your initial power delivery for enhanced traction and smoother acceleration on low-grip surfaces.

What's Under the Hood

• Type: Sensored / Sensorless Brushless
• Continuous/Peak Current: 150A / 1000A
• Input Voltage: 2S LiPo
• BEC Output: Switch Mode: 5.0V-7.4V Adjustable, 5A Continuous (10A Peak)
• Motor Limits: Touring ≥ 4.5T | Buggy ≥ 5.5T (3650/540 size 2-pole)

Specifications

• Scale: 1/10th
• Dimensions (LxWxH): 37.7 x 37.0 x 33.2mm (with fan)
• Weight: 94.2g (including wires and connectors)
• Wire Size: 13AWG (200mm)
• Connectors: None (requires soldering)

What's In The Box

• (1) Xerun XR10 Pro Legacy V2 150A ESC
• (1) Intelligent Cooling Fan
• (1) Decal Sheet & Accessory Pack
• (1) Product Manual

Note: Requires soldering equipment to attach battery connectors and motor wires. A compatible 2S LiPo battery and 1/10 scale brushless motor are required for operation. Pro-Tip: Full reverse polarity protection requires a non-polarized capacitor pack; the stock capacitor may be damaged if the battery is connected backward, but the ESC itself will survive!
