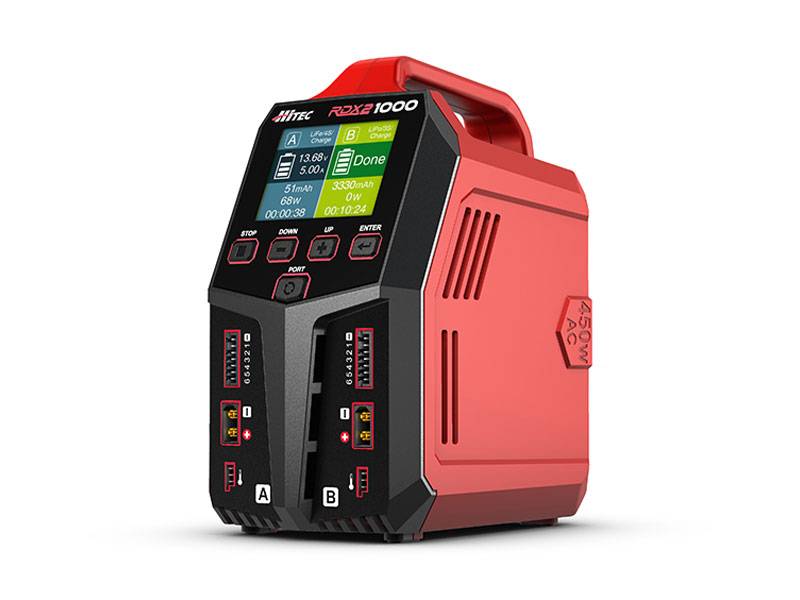

RDX2 1000 AC/DC Dual Port Charger / Discharger / Power Supply

With a sleek modern design and easy-to-transport handle, the RDX2 1000 is the AC/DC powerhouse you need to charge your high-capacity battery packs at rapid rates. The dual output ports each offer 20 amps of power to simultaneously charge two batteries of any chemistry; or, you can pair the outputs to charge at rates up to 35 amps.

The RDX2 1000 features an easy-to-use LCD interface display and handy push button controls, while the front-panel XT60 connectors and XH balance ports help keep wiring uncluttered. Its high charge and discharge rates for lowering resistance and improving power make it perfect for Stock Class racers. Accepting both 12V DC, and 100 – 240 volts AC, the RDX2 1000 is ideal for charging at home or in the field, and perfect for all hobbyists needing ultra-fast charging of their larger battery packs. Internal circuitry allows discharge rates up to 2 amps, and 40 amps when paired with the companion AD350 Analyzer & Discharger (sold separately).

Features

• User-Friendly Interface
• Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
• Battery Meter
• Internal Resistance
• Terminal Voltage Control
• Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
• Capacity Cut-Off Limit
• Smart Ventilation Fan
• Intelligent Power Distribution Between Ports
• USB-C Socket for PC Interface and Firmware Upgrades
• Programmable Power Supply Function 5-27V / 1-15A
• Tire Warmer Power Supply Output (16V/8A

Technical Specifications

• 100V – 240V AC Operating Voltage Range
• LiPo, LiFe & LiIon Cell Count: 1-6 Cells
• NiCd/NiMH Cell Count: 1-15 Cells
• Pb Lead-Acid Based Cell Count: 2-20 Volts
• Charge Circuit Power: 450W AC / 1000W DC
• Discharge Circuit Power: 10W (350W w/ AD350 Discharge Module)
• Charger Current Range: 0.1A – 20A x 2 / 0.1A – 35A Parallel
• PC Interface with Downloadable Software
• 12V Power Supply Mode Runs other Devices
• Dimensions: 7.5 x 6.0 x 3.9 in. / 190 x 152 x 99mm
• Weight: 3.0 lbs. / 1.36kg

Hitec Charge Master Software 1.05 for RDX Series Chargers*

Charge Master V1.05 **

*For use with chargers with internal USB output
**Note: To program and save presets in Windows 10, you must run this software as administrator.
