Cobra 10 ESC w/ 1406-2850Kv Sensored Motor Combo
Cobra 10 ESC w/ 1406-2850Kv Sensored Motor Combo
SKU:010-0174-07
Out of stock
Couldn't load pickup availability

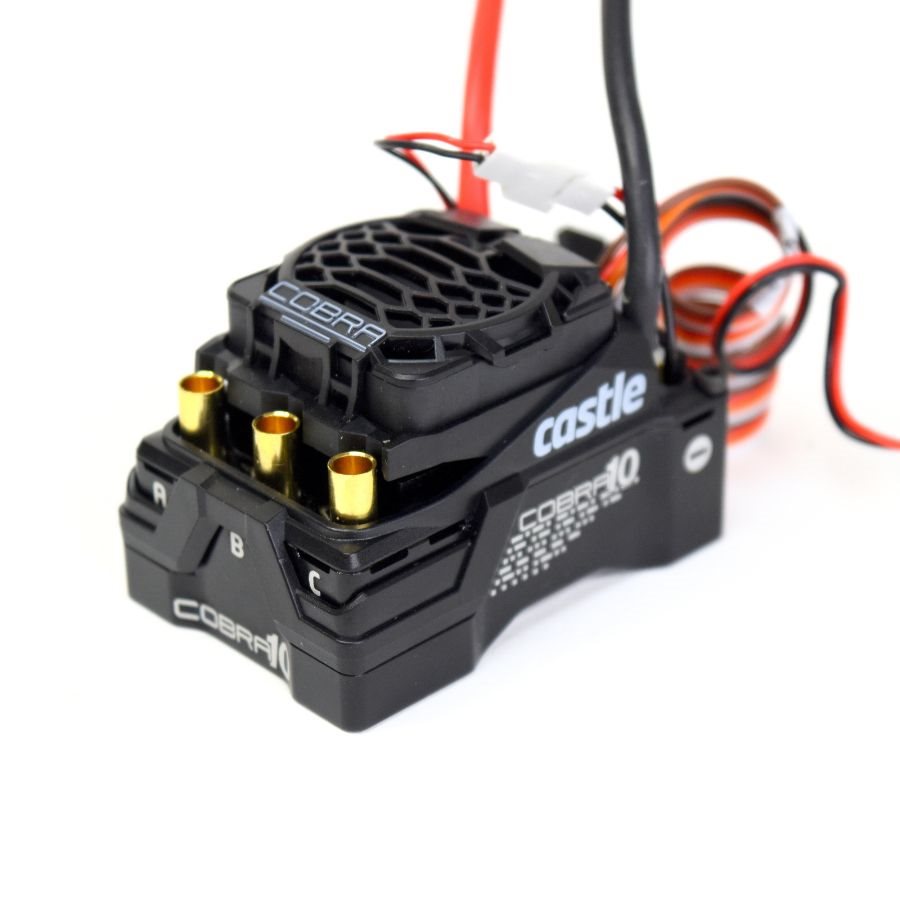

We're thrilled to introduce the Cobra 10, our next generation electronic speed controller (ESC) for surface applications.
The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor,ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE™technology,engineered to reduce operational temperatures,significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
| CRAWLER COMBO | APPLICATION |
| 1406-2850Kv | Ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 2s to 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. |
NEW FEATURES:
- 32-Bit Processing power for smoother motor control and improved response time.
-
Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
-
Hill Hold feature
- Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline.
-
Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)
MORE FEATURES:
|
|
COBRA 10 COMES WITH:
|
| Cobra 10 Technical Specs | |
|---|---|
| Controller | |
| Input Voltage Range: | MIN: 2s LiPo MAX: 6s LiPo (25.2V) (4s max with included 1406-2850kv motor) |
| BEC Specifications: | 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Running Modes: | SmartSense Brushless, Sensored Only, Brushed |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Yes, factory equipped (25mm),temperature controlled |
| Size: | 55.9mm x 38.3mm x mm (2.2" x 1.51" x 1.44") |
| Weight (with no battery connector): | 4.02oz (114g) |
| Battery Wire: | 12AWG |
| Connectors: | 4.0mm female bullets for motor connection, matching 4.0mm male bullets required |
| Items Needed for Operation: | A high current connector designed for high-powered electric systems, rated for 70+ amps, such as Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs soldered to the battery leads. |
| Product Use Statements: |
Not intended for drag racing applications. *Although Cobra 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
|
Max. Recommended Vehicle Weight |
Less than 9lbs, with batteries, ready-to-run with included 1406-2850kv motor in low speed crawlers; 5lbs maximum for more aggressive setups like rock racing and extended hill climbing |
| Programmability: |
Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required) |
| Castle Link Mobile App (B-Link): |
In development |
| Tech Tips: |
|
| 1406-2850kv Technical Specs | |
|---|---|
| Input Voltage Range: | 2-4S LiPo |
| Kv: | 2850 |
| Max. RPM: | 100,000 |
| Size: | Length: 49.5mm Diameter: 36mm |
| Weight (w/wires): | 193g / 6.8oz |
| Shaft Size: | Length: 15mm Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: | M3 @ 25mm |
| Cooling Fan: | Optional, coming soon! |
| Connectors: | 4mm male Castle Bullet Connectors |
| Application Guidelines: | Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs. Please refer to our Product Finder for recommended motor, battery and gearing for some of the more popular vehicles on the market. |
| Max. Recommended Vehicle Weight: | 9lbs when used for low speed/moderate driving style like rock crawling and trail running; 5lbs for more racing and aggressive driving styles. |
| Tech Notes: |
Running modes: SMARTSENSE™, Sensored only |
| Comparable Turn Count: | 2-Pole Equivalent Turn-Count Data Sheet |
