EzRun Max 5 Combo - 56113SL-800KV-Max5

EzRun Max 5 Combo - 56113SL-800KV-Max5

SKU:38010600

Regular price $339.99 USD
Regular price Sale price $339.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

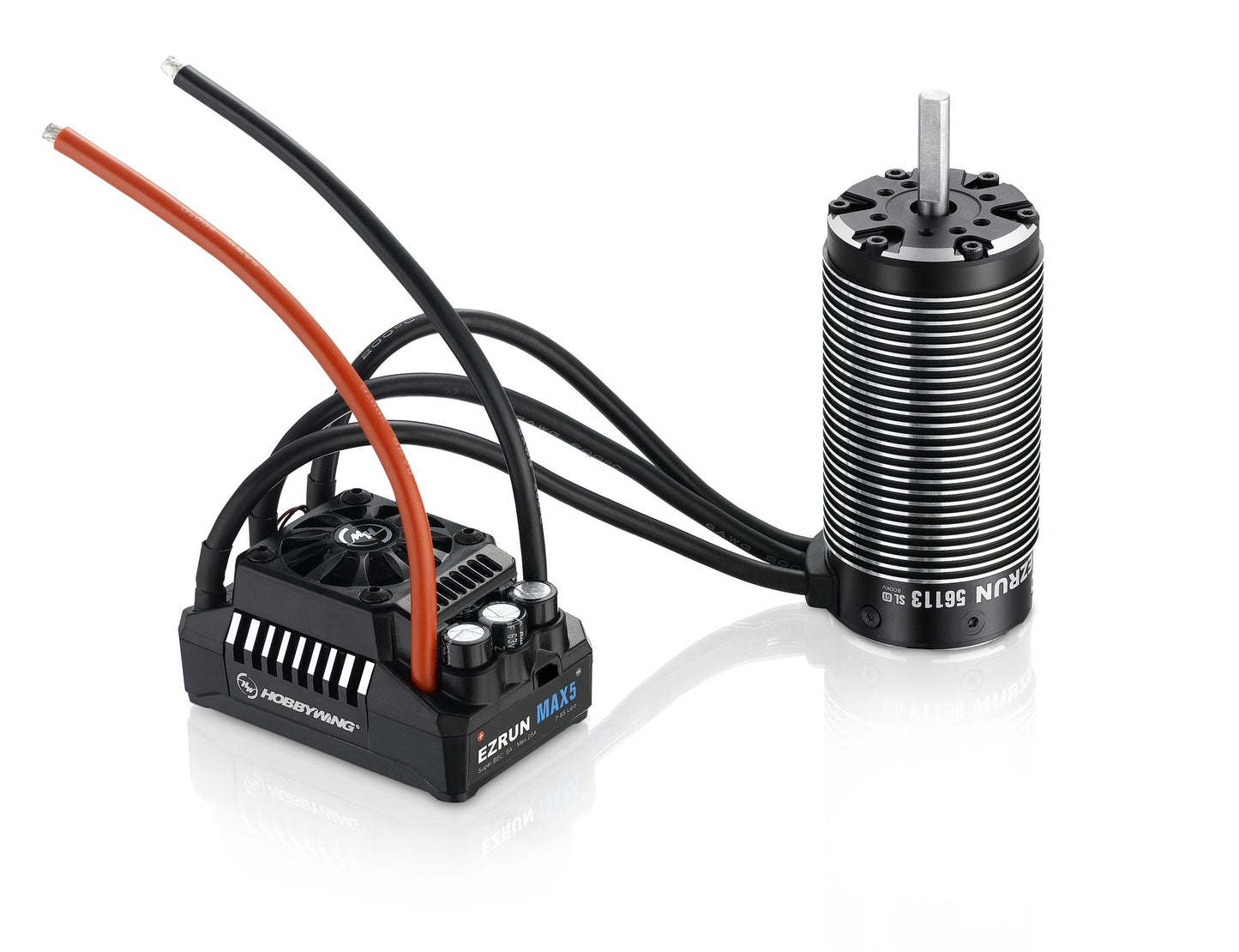

EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo includes the 56113SL 1/5 scale, 800kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.



Specifications:

  • Motor:
    • Model: 56113-800KV
    • Pole: 4
    • KV (No-load): 800KV
    • Resistance: 0.00049 Ω
    • Current (No-load): 3.2 A
    • Max. Output Power: 5800 W
    • Current at the point of M.O.P: 200 A
    • Motor Diameter: 56mm
    • Motor Length: 113mm
    • Shaft Diameter: 8.0mm
    • Shaft Length: 31.0mm
    • LiPo Cells: 3-8
    • Weight: 1210g (42.68oz)
    • Application: 1/5th RC Vehicles, Truck/Dragster
  • ESC:
    • Continuous Current: 200A
    • Peak Current: 1,300A
    • Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
    • Applications: 1/5th Touring Car, Buggy, Truggy and Truck
    • Motor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor)
    • LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
    • BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
    • Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
    • Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
    • Size (LxWxH): 93.35x58.12x47.81m
    • Weight: 342g
    • Programming Port: FAN /PRG Port
