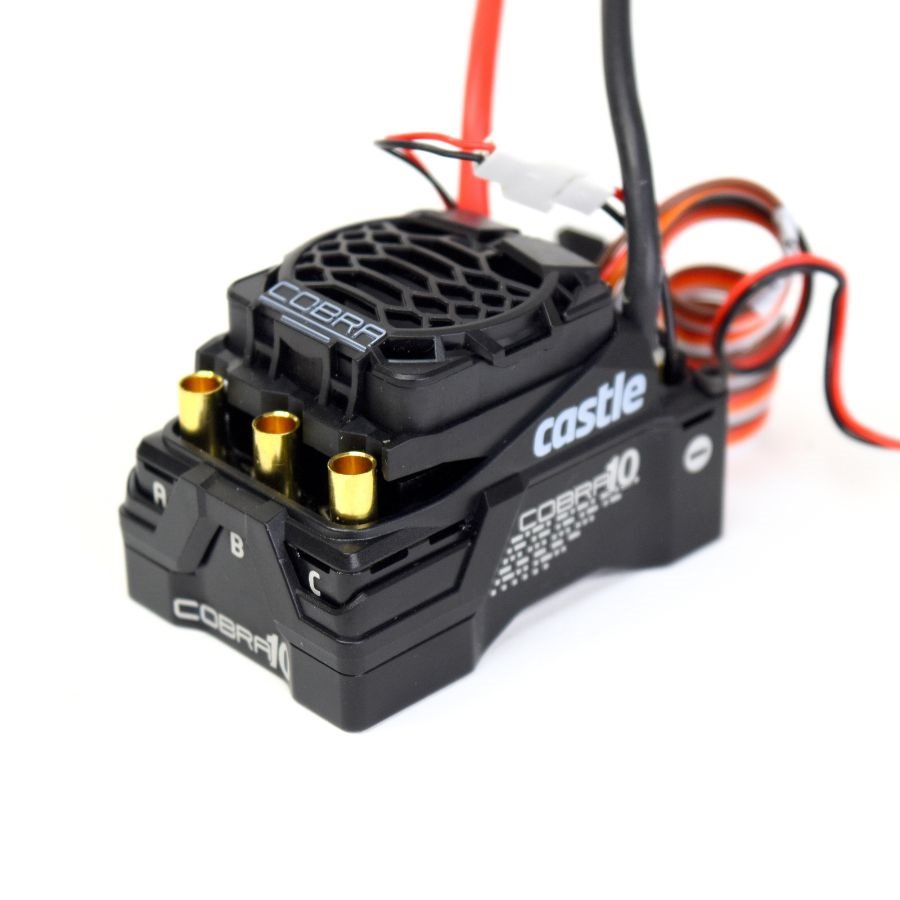

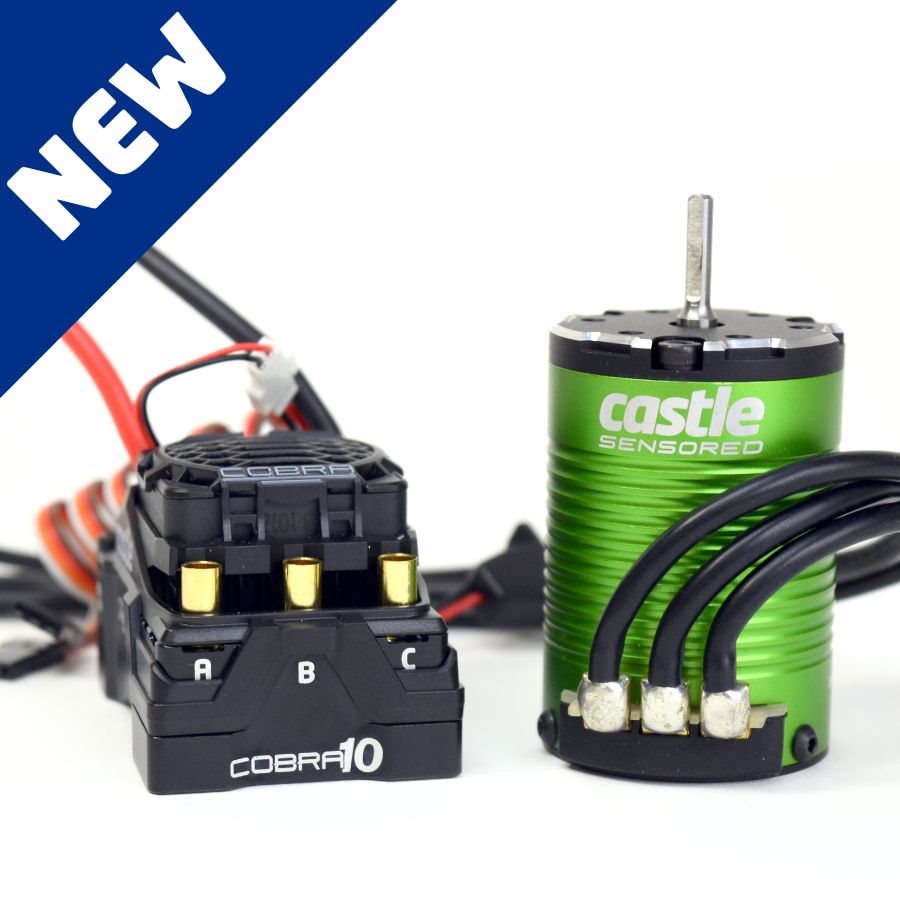

Cobra 10 ESC w/ 1406-5700Kv Sensored Motor Combo

Castle CreationsSKU: 010-0174-02

Price:
Sale price$254.99
Stock:
In stock

Description

We're thrilled to introduce the Cobra 10, our next generation electronic speed controller (ESC) for surface applications.

The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor,ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE™technology,engineered to reduce operational temperatures,significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

 BASHER COMBO  APPLICATION
1406-5700kv The perfect combo for 1/10th scale vehicles weighing less than 5lbs.
Suggested applications include 1/10th scale touring cars, buggies and
stadium trucks up to a 3s LiPo. It can also be used in a 1/10th scale
 2WD Short Course Truck on 2s LiPo and geared conservatively.

NEW FEATURES:

  • 32-Bit Processing power for smoother motor control and improved response time.
  • Enhanced Data Logging includes:
    • Double the maximum sample frequency of older generations.
    • 8x increased logging time of older generations.
    • Data point for ESC electrical motor timing.
    • Data point for acceleration via onboard accelerometer.
    • Looping feature prevents interruptions in data log recording.
    • Ability to download specific sessions.
  • Hill Hold feature
    • Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline.
  • Additional tuning features include:
    • Improved braking adjustability
    • Separate brake and reverse curves
    • Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
  • Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
  • Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)

MORE FEATURES:



  • Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 3s max with included 1406-5700kv motor
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 25mm cooling fan
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Cobra 10 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty



COBRA 10 COMES WITH:

  • Cobra 10 ESC
  • 1406-5700kv sensored brushless motor
  • Castle Link V4 USB Adapter
  • 250mm Direct Connect Sensor Wire
  • Castle Decals
  • ESC Quick Start Guide
