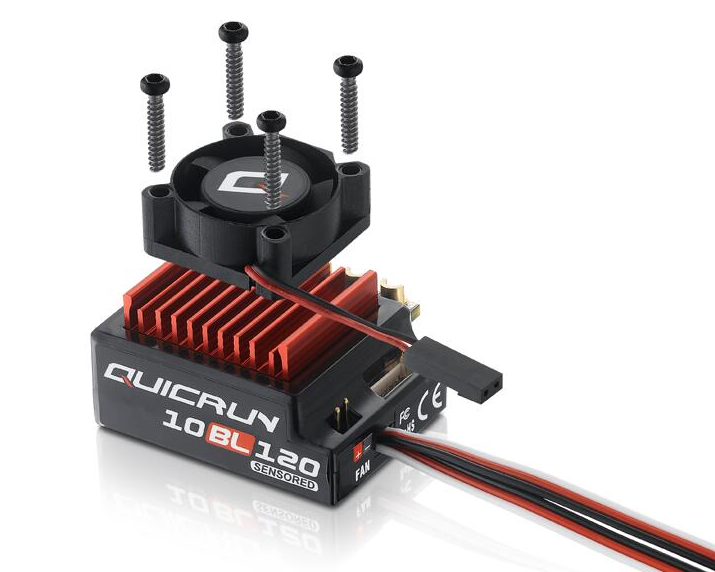

QuicRun 10BL120 Sensored Brushless ESC (1/10, 120A)

HobbywingSKU: 30125000

Price:
Sale price$59.99
Stock:
In stock

Description

High performance, reliable, race-ready ESC. The compact size is suitable for various car chassis'. The built-in auto identification system recognizes sensored or sensorless brushless motors. Core competition program for excellent control feel & multiple programmable items.

8 steps of timing adjustments
4 steps of maximum brake force adjustments
8 steps of drag brake force adjustments
4 steps of initial brake force adjustments
9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for different kinds of cars, tires and tracks.

Multiple protections include:
Low voltage cut-off protection for Lipo or NiMH battery
Over-heat protection
Throttle signal loss protection
Motor Lock-up protection.

One-button to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.

Motor Limits:
4-6 cells NiMH / 2S LiPo: 3.5T (1/10 On-road), 4.5T (1/10 Off-road)
8-9 cells NiMH / 3S LiPo: 8.5T (1/10 On-road), 10.5T (1/10 Off-road)

Specifications:



  • Continued / Peak Current 120A / 760A
  • For 1/10th Touring Car/Buggy/F1/Drift Car
  • Battery 4-9 cells NiMH, 2-3S LiPo
  • BEC Output 6V@3A, Linear Mode
  • Cooling Fan Powered by the battery
  • Dimensions / Weight 43 x 36 x 33mm (w/ Fan) / 105g (w/ Wires & Fan)

  •
